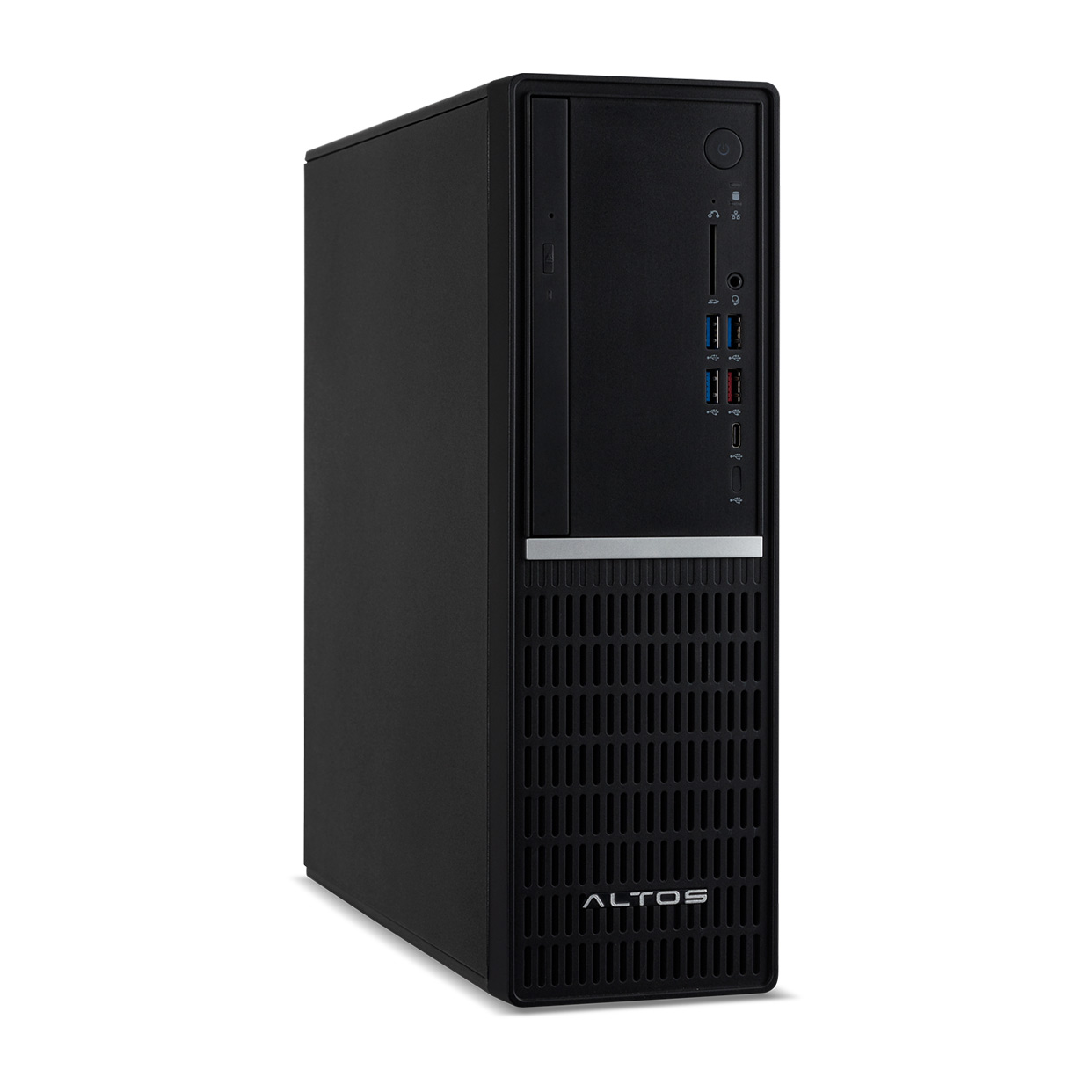

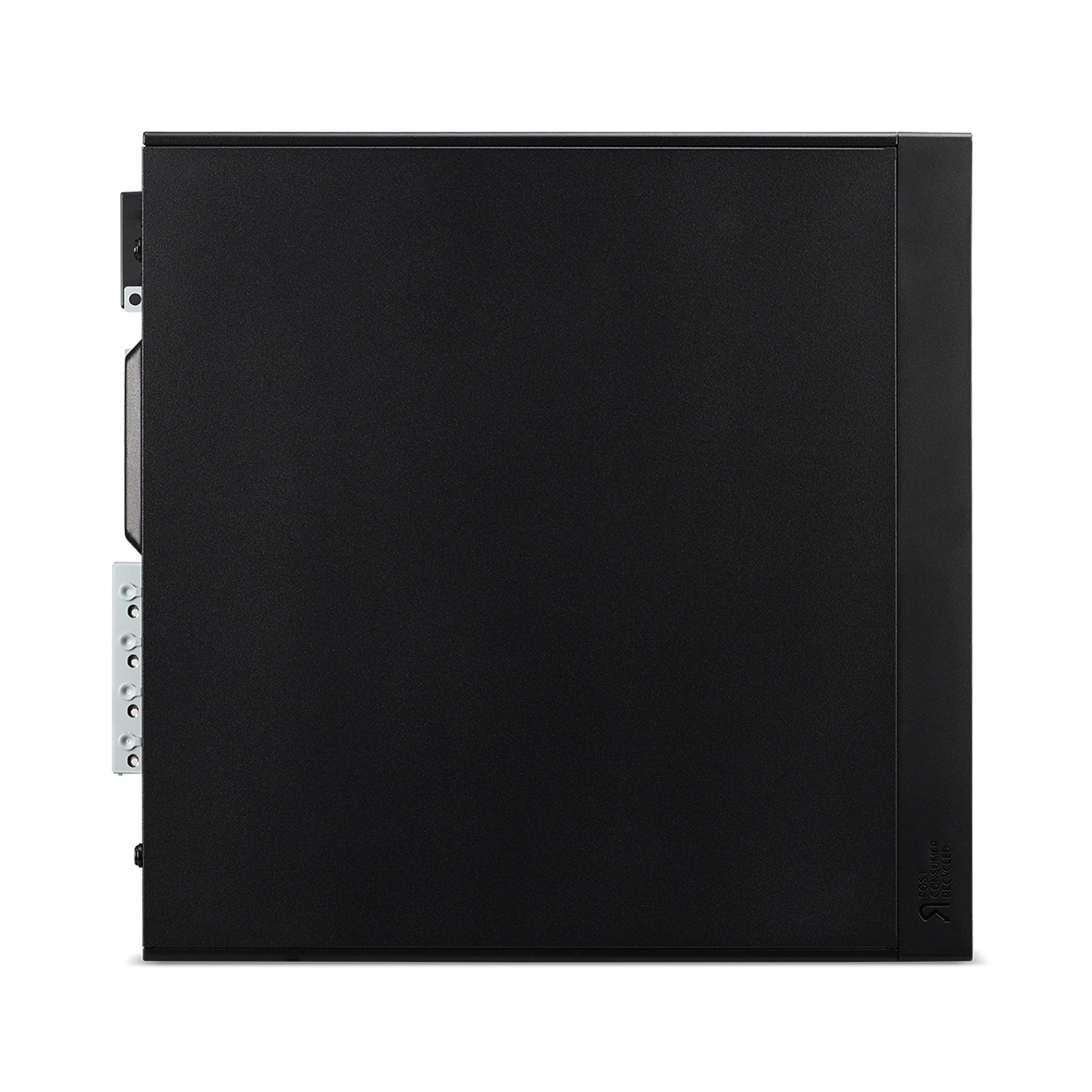

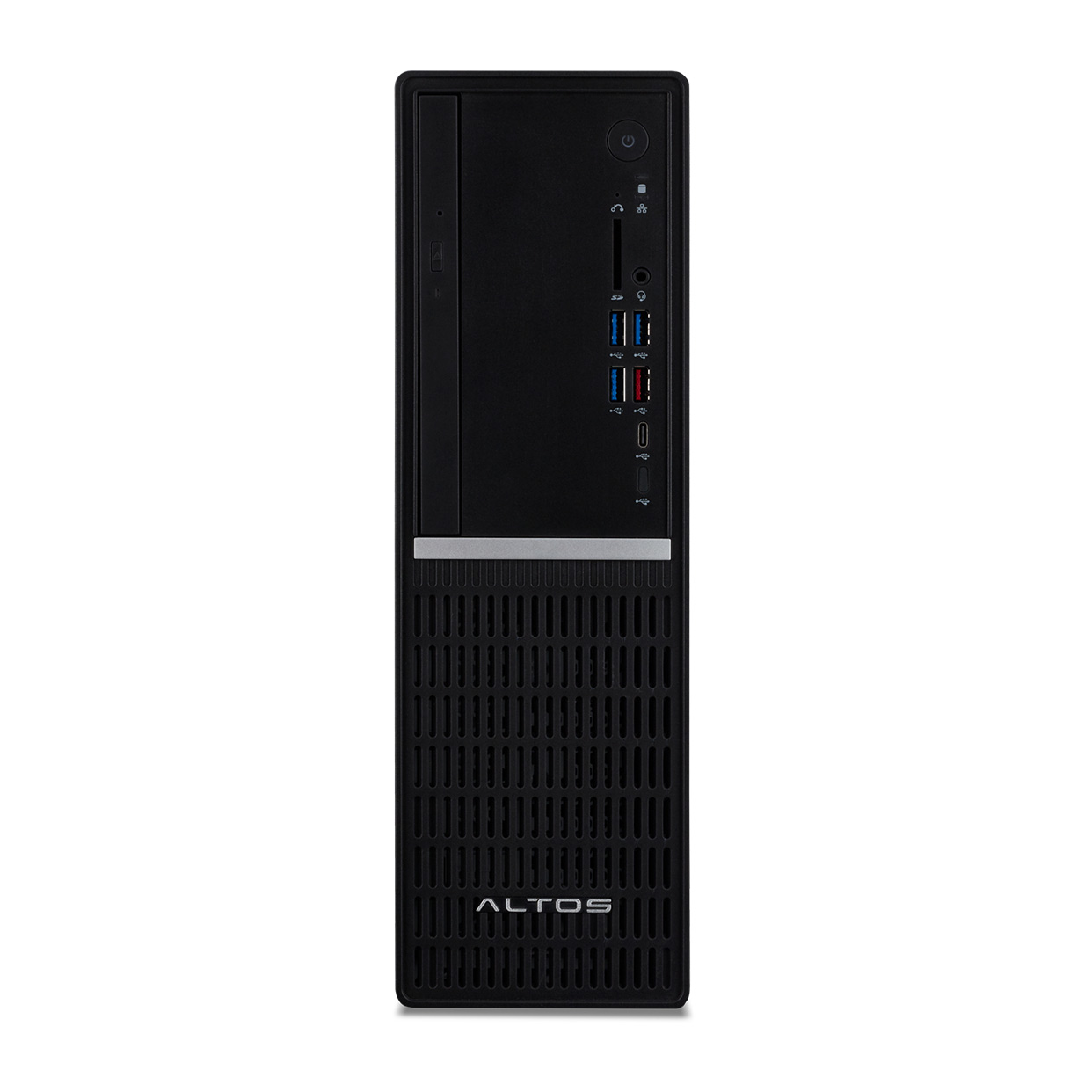

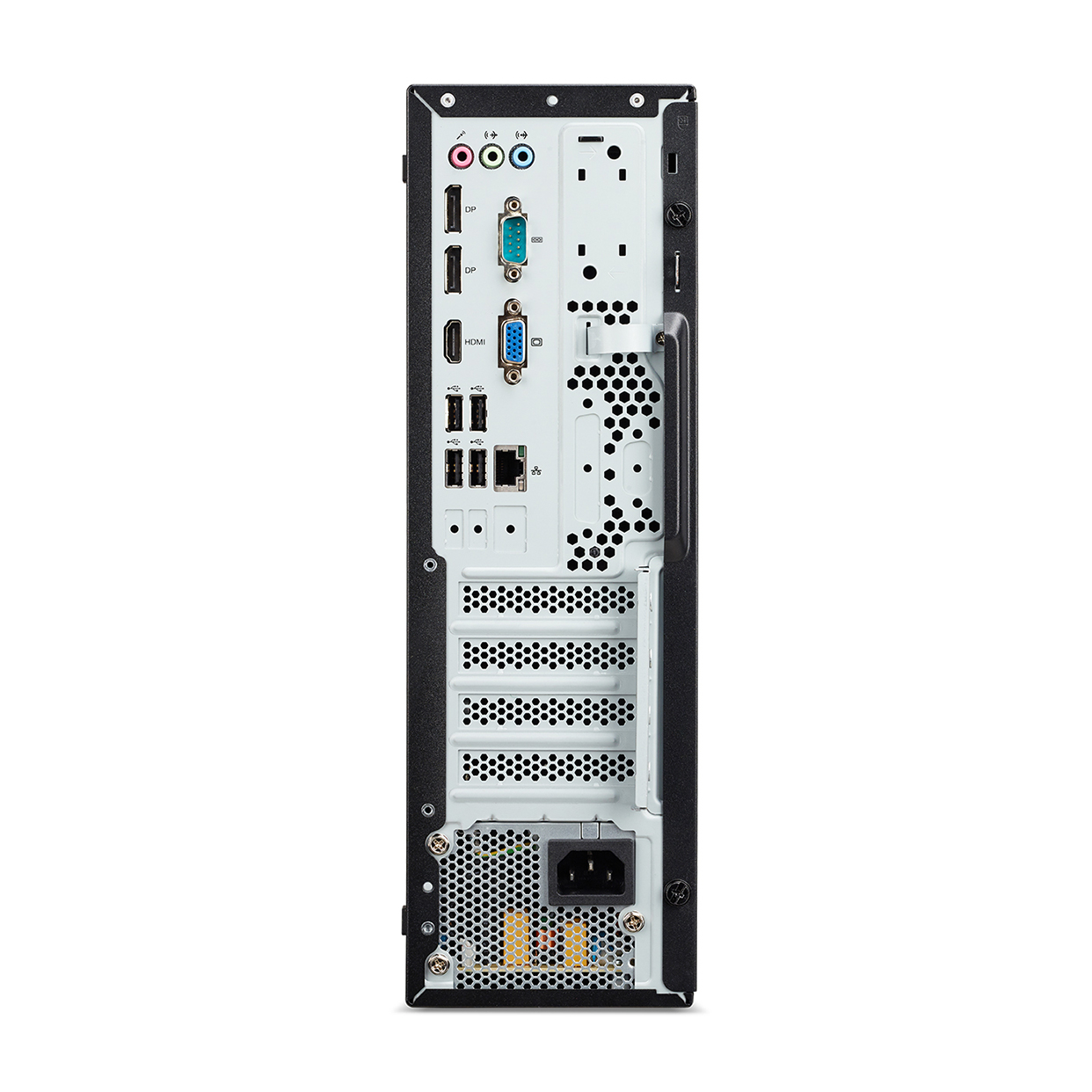

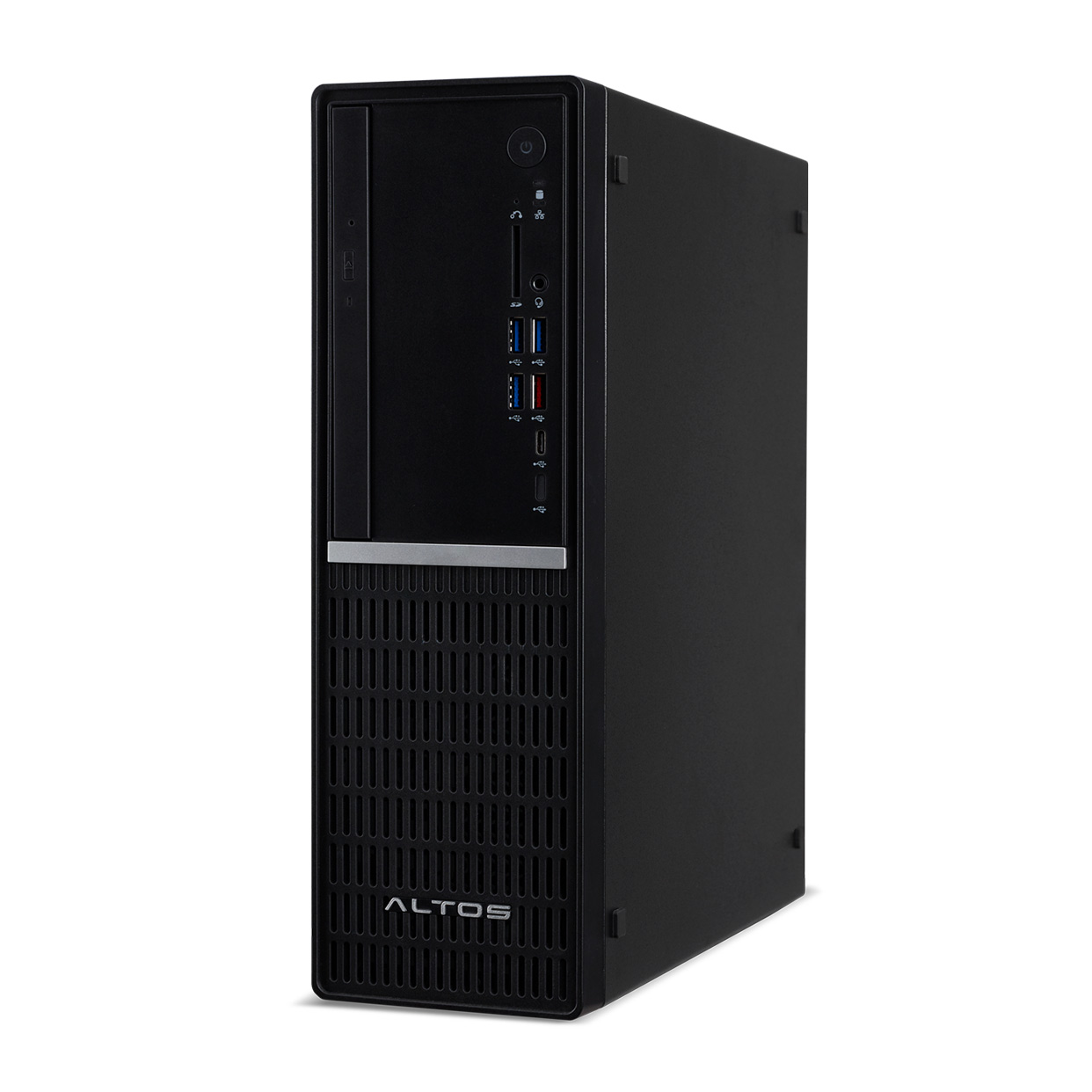

Altos P10 F9 (10L) Workstation
Altos P10 F9 equipped with 14th Generation Intel® Core™ Processor and support DDR5 memory, offers extreme compute power to handle heavy workloads with higher efficiency. Supports multiple PCIe Gen 4 expansion slots and dual PCIe Gen 4 M.2 NVMe SSD which makes high processing performance and data storage speed. Ideal for users demanding long-term usage, performance focusing, and flexible expansions.
Powerful performance
With 14th Generation Intel® Core™ Processors, Altos P10 F9 provides state of art performance. Except for built-in Intel® UHD Graphics high-quality display technology, Altos P10 F9 also support a variety of the latest NVIDIA® graphics cards. With optional NVIDIA® Quadro RTX professional graphics card, its RT and Tensor core support real-time ray tracing and artificial intelligence acceleration, providing the best graphics computing performance.
Flexible expansions, easy maintenance
Altos P10 F9 has multiple PCIe Gen4 expansion slots, dual PCIe GEN4 M.2 NVMe SSD slots, provides the most flexible and high speed expansion options. Also with latest Wi-Fi 6E to further mitigate the limitation of distance. And thanks to its unique chassis design, users can easily replace or update internal components, significantly reduce maintenance time & costs.
A variety of choice for chassis and power supplies
Altos P10 F9 provide two kinds of chassis and multiple 80PLUS power supply options, users can easily find the best combinations to meet different demands.
Altos P10 F9 (10L) Workstation
- Processors:Intel 12th / 13th / 14th Core™ series, TDP up to 65W
- Power Supply:300W Single –rail 12V, 80PLUS® Brown or Platinum 400W Single –rail 12V, 80PLUS®Gold
| Processors | Intel 12th / 13th / 14th Core™ series, TDP up to 65W |
| Number of Processor | 1 |
| Memory | 4 DIMM slots (Dual channel) |
| Up to 128GB Non-ECC DDR5 4000 MHz UDIMM2 | |
| I/O Expansion | 1 PCI-E 4.0 x16 slot |
| 1 PCI-E 3.0 x16 slot (x4 Lanes) | |
| 1 PCI-E 3.0 x1 slot | |
| 1 PCI slot | |
| 2 M.2 2280 PCI-E 4.0 slots (For SSD) | |
| 1 M.2 2230 PCI-E 3.0, E Key for Wi-Fi & Bluetooth | |
| Management Network Interface (Controller) | 1 Gb/s (10/100/1000) BASE-T LAN Port (Intel® I219-V) |
| Storage | Media bay (Optional) slim ODD bay：For 9.0 mm ODD |
| Storage bay 1 x 3.5 | |
| Power Supply | 300W Single –rail 12V, 80PLUS® Brown or Platinum |
| 400W Single –rail 12V, 80PLUS® Gold | |
| OS Support | Microsoft® Windows 10/11 Pro 64-bit UEFI Shell |
| Dimension | 348.7 (D) x 105 (W) x 335 (H) mm (13.73 x 4.13 x 13.19 inches) |
- Integrated SATA RAID supports RAID 0, 1, 5, 10 on Windows® OS only.
- Memory speed may vary, depending on the CPU, chipset or memory fitted. MEM Frequency 4400(2DPC-1DIMM), 4000(2DPC-2DIMM 1R), 3600(2DPC-2DIMM 2R)
- Extended warranty services may vary by country. Please contact Altos for more information
