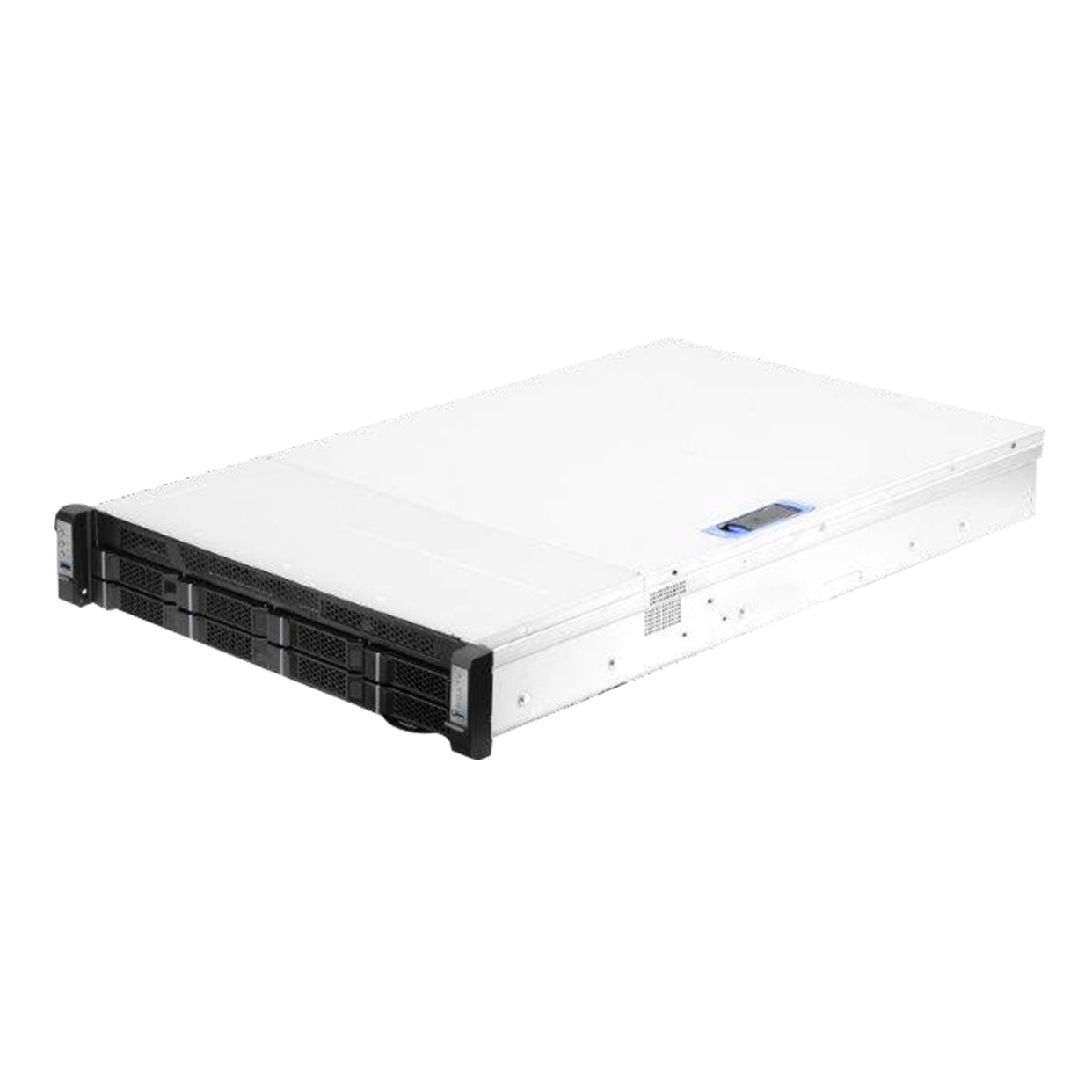

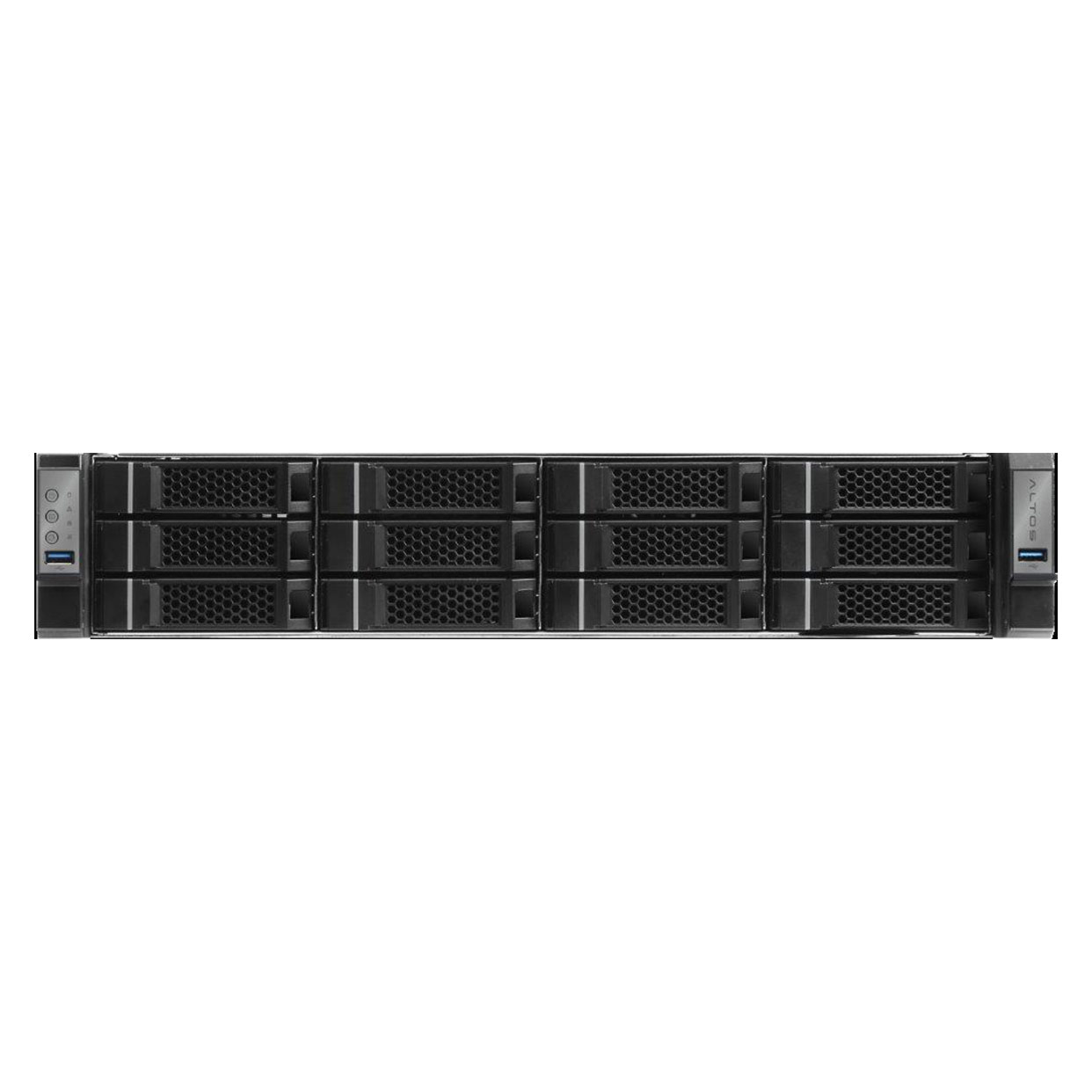

Altos BrainSphere™ R370 F5 Server
Altos BrainSphere™ R370 F5, equipped dual 3rd Gen Intel® Xeon® Scalable series processors, is a robust two-socket 2U system that is ideal for almost any type of applications. This dynamic and balanced system can function as a database server for Big Data Analytics, a computing node for your HPC (High-Performance Computing) environments, or used for virtualization purposes in your cloud infrastructure. Extremely powerful and highly efficient, this system functions as the core for your most demanding data-center needs.
Rich Computing Power
Powered by 3rd Gen Intel® Xeon® Scalable processors, with 8 channels of memory per socket, the 3rd Gen Intel® Xeon® Scalable processors strikes the perfect balance of threads/cores, memory, and raw IO, to deliver most optimized performance and support most demanding workloads.
Excellent Expandability
In additional, Altos BrainSphere™ R370 F5 provides 16 DDR4-3200 DIMM slots, 5 PCIe slots and 1 internal PCIe slots, total of twelve 3.5” or 2.5” drive bays, to perfectly fulfill demands of high-capacity memory and storage.
Robust Availability
The BrainSphere™ R370 F5 has dual 800W/1200W PSU options, to support 1+1 redundancy.
Altos BrainSphere™ R370 F5 Server
- Processors:3rd Gen Intel® Xeon® Scalable Processors
- Power Supply:2 x 800W/ 1200W redundant power supply options
| Processors | 3rd Gen Intel® Xeon® Scalable Processors |
| Number of Processor | 2 |
| Memory | 8-Channel per CPU, DDR4 ECC RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 3200 |
| Up to 1,024GB RDIMM/ 2,048GB LRDIMM/ 2,048GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR | |
| I/O Expansion | 2x PCI-E Gen4 x8 |
| 3x PCI-E Gen4 x16 | |
| Management Network Interface (Controller) | Altos Smart Server Manager |
| Storage | 8 / 12 x 3.5” (2.5” Optional on 3.5” Bays) |
| Power Supply | 2 x 800W/ 1200W redundant power supply options |
| OS Support | Windows Server 2022 / 2019 |
| Red Hat® Enterprise Linux® | |
| Dimension | 2U, Rackmount |
