Altos BrainSphere™ R370 F7

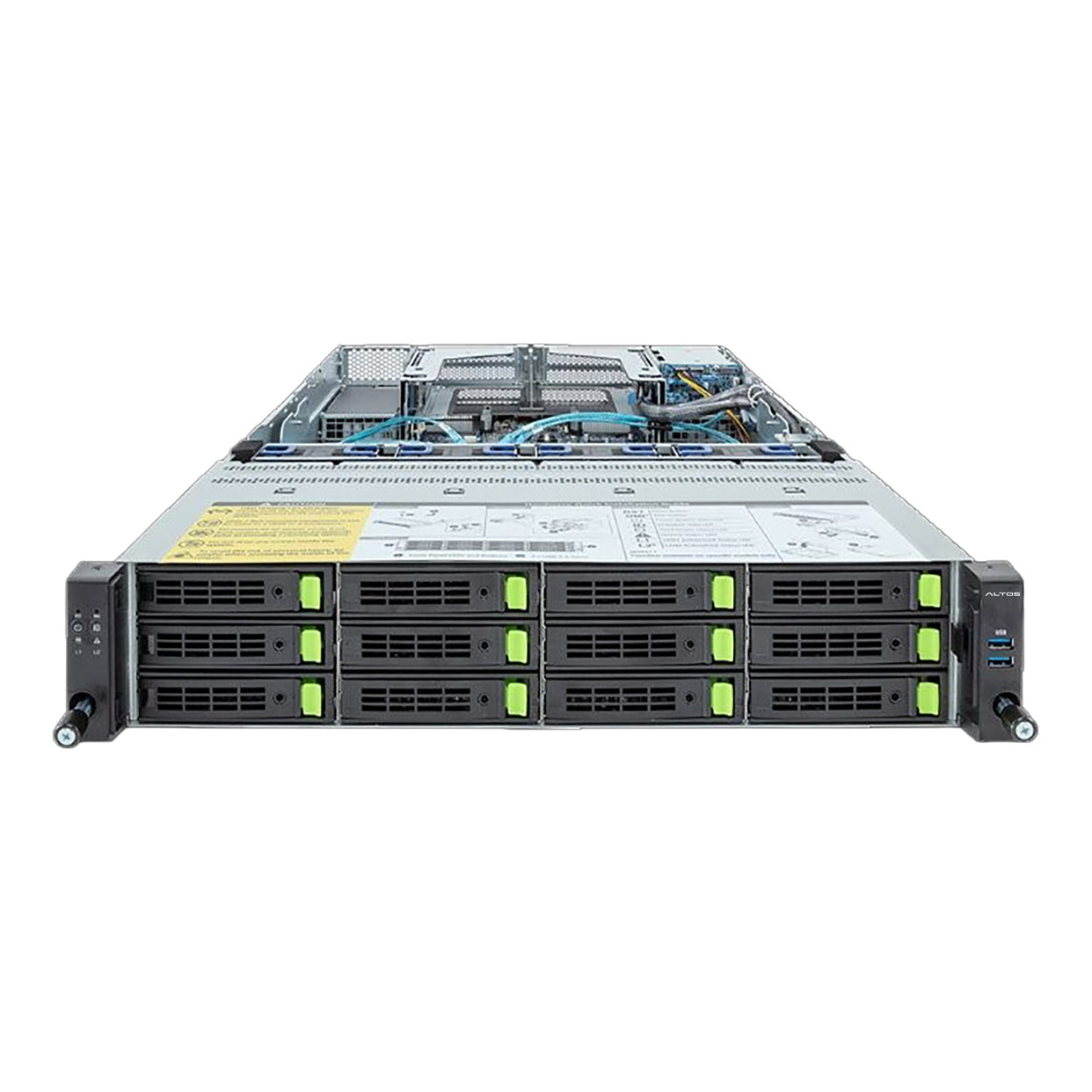

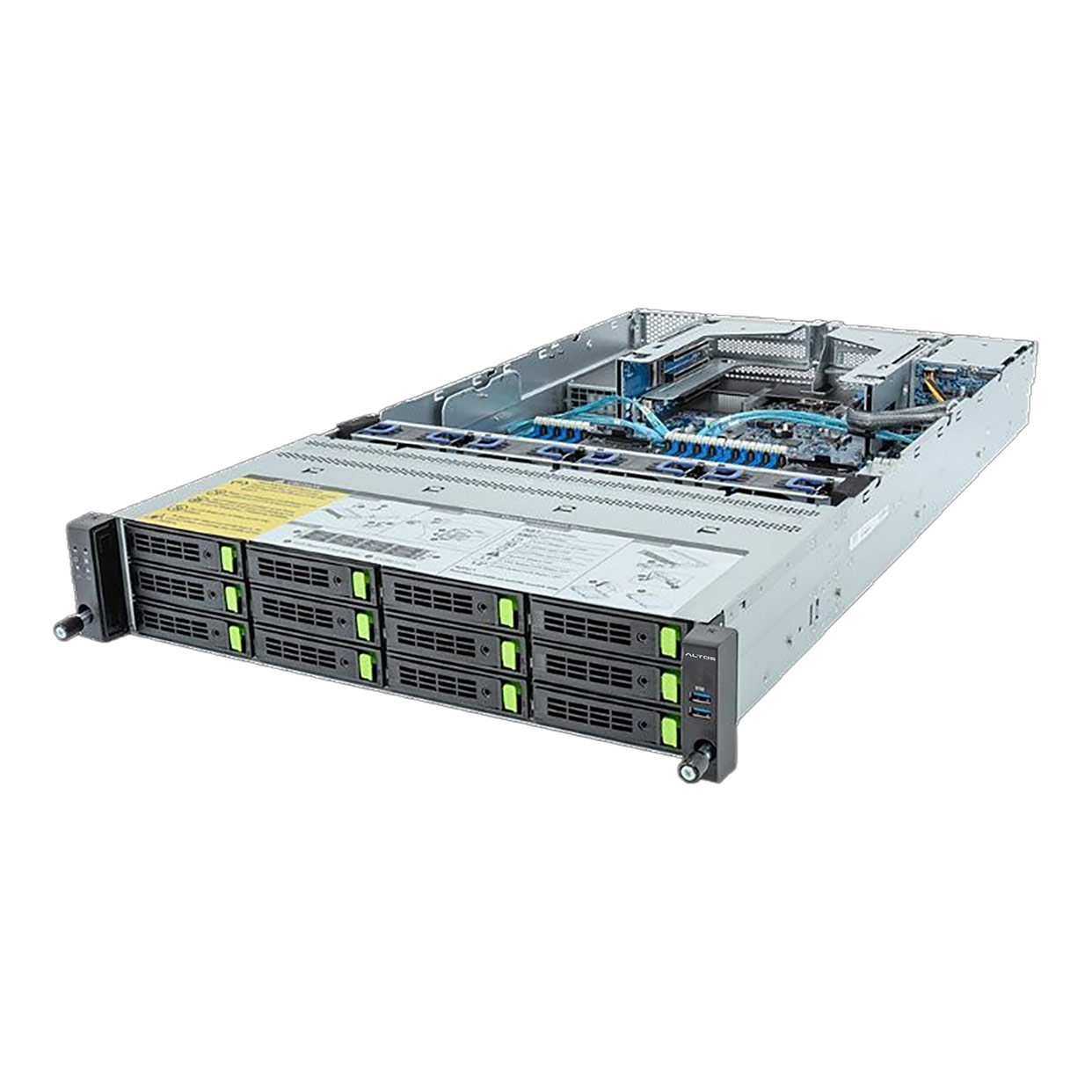

Altos BrainSphere™ R370 F7 is a powerful Dual socket 2U system designed to deliver outstanding performance, featuring the 6th generation Intel® Xeon® Scalable series processors. The system is designed to meet a variety of application requirements, including big data analytics, high-performance computing, virtualization, edge computing, and cloud computing.
Rich Computing Power
Powered by 6th Gen Intel® Xeon® Scalable processors, with 8 channels of memory per socket, the 6th Gen Intel® Xeon® Scalable processors strikes the perfect balance of threads/cores, memory, and raw IO, to deliver most optimized performance and support most demanding workloads.
Excellent Expandability
In addition, Altos BrainSphere™ R370 F7 provides 32 DDR5-DIMM slots, 2x FHHL Dual Slot PCIe Gen5 x16 Slots , 2x FHHL Single Slot PCIe Gen5 x16 Slots , 2x OCP 3.0 Gen5 x16 Slots and 2x M.2 Slots, total of 12x 3.5” or 2.5” Gen5 NVMe/SATA/SAS-4 drive bays on Front and 2x 2.5” SATA/SAS-4 drive bays on Rear, to perfectly fulfill demands of high-capacity memory and storage.
Robust Availability
The BrainSphere™ R370 F7 has dual 2000W PSU, 80 PLUS Titanium, to support 1+1 redundancy.

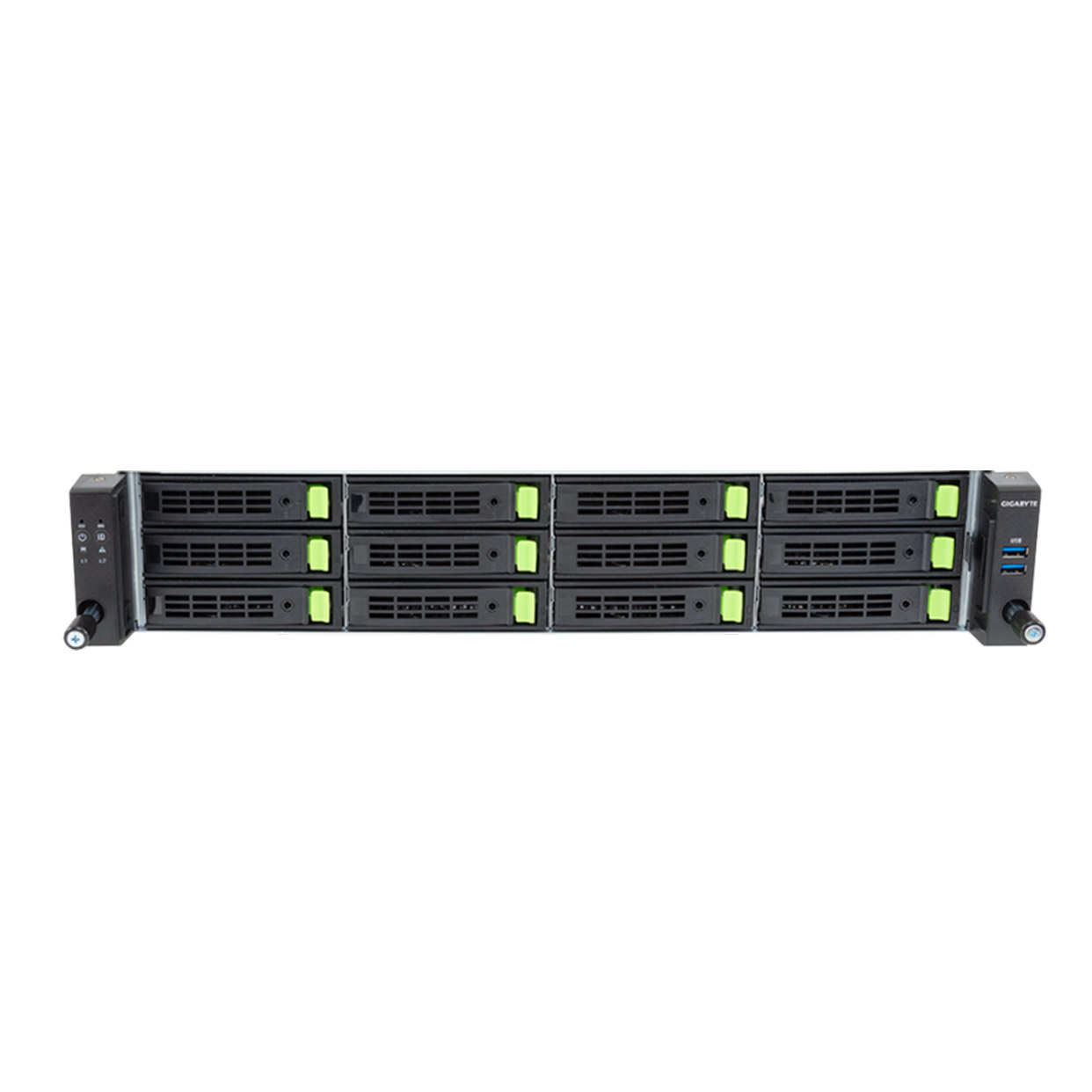

Altos BrainSphere™ R370 F7
- Processors：6th Gen Intel® Xeon® Scalable Processors (TDP up to 350W)
- Power Supply：2 x 2000W Titanium redundant power supply
| Processors | 6th Gen Intel® Xeon® Scalable Processors (TDP up to 350W) |
| Number of Processor | 2 |
| Memory | 32 DIMM slots (16 + 16) |
| 8-Channel DDR5 RDIMM / MR DIMM, 32 x DIMM slots RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC) MR DIMM: Up to 8000 MT/s (*MR DIMMs are only supported with Intel Xeon 6 Processors with P-cores and in a 1DPC configuration.) |
|
| I/O Expansion | (PCIe) 2 x FHHL Dual-slot PCIe Gen5 x16 slots |
| (PCIe) 2 x FHHL Single-slot PCIe Gen5 x16 slots | |
| (OPC 3.0) 2 x OCP 3.0 Gen5 x16 slots (supports NCSI function) | |
| (M.2) 2 x M.2 slots (M-key, PCIe Gen5 x4, support 2280/22110 cards) | |
| Management Network Interface (Controller) |
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2) - supports NCSI function |
| 1 x 10/100/1000 Mbps Management LAN | |

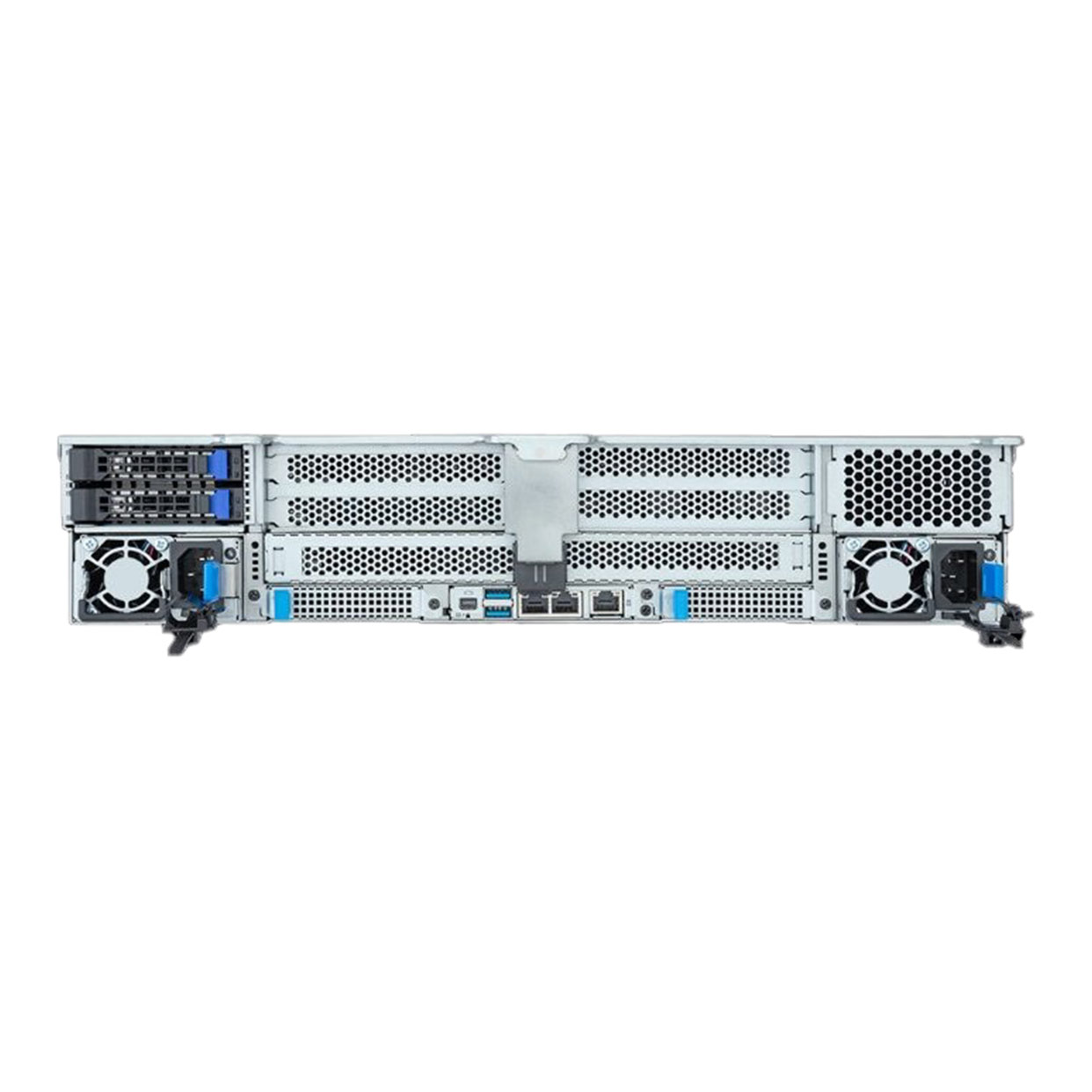

| Storage | Front: 12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4* hot-swappable bays Rear: 2 x 2.5" SATA/SAS-4* hot-swappable bays *Storage card is required to support SATA and SAS drives. |
| Power Supply | 2 x 2000W Titanium redundant power supply |
| OS Support | Windows Server 2022 / 2025 Red Hat® Enterprise Linux® |
| Form Factor | 2U, Rackmount |
