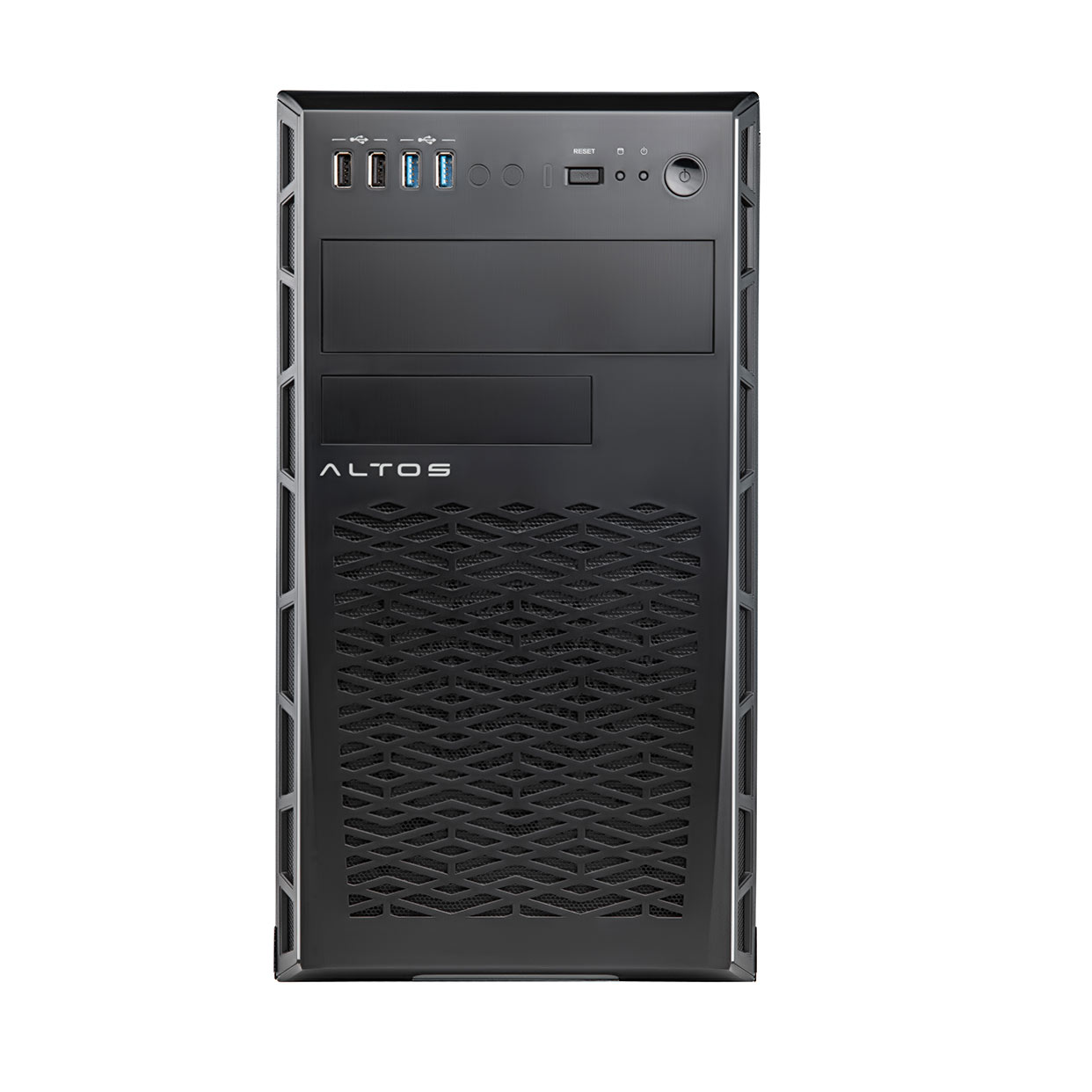

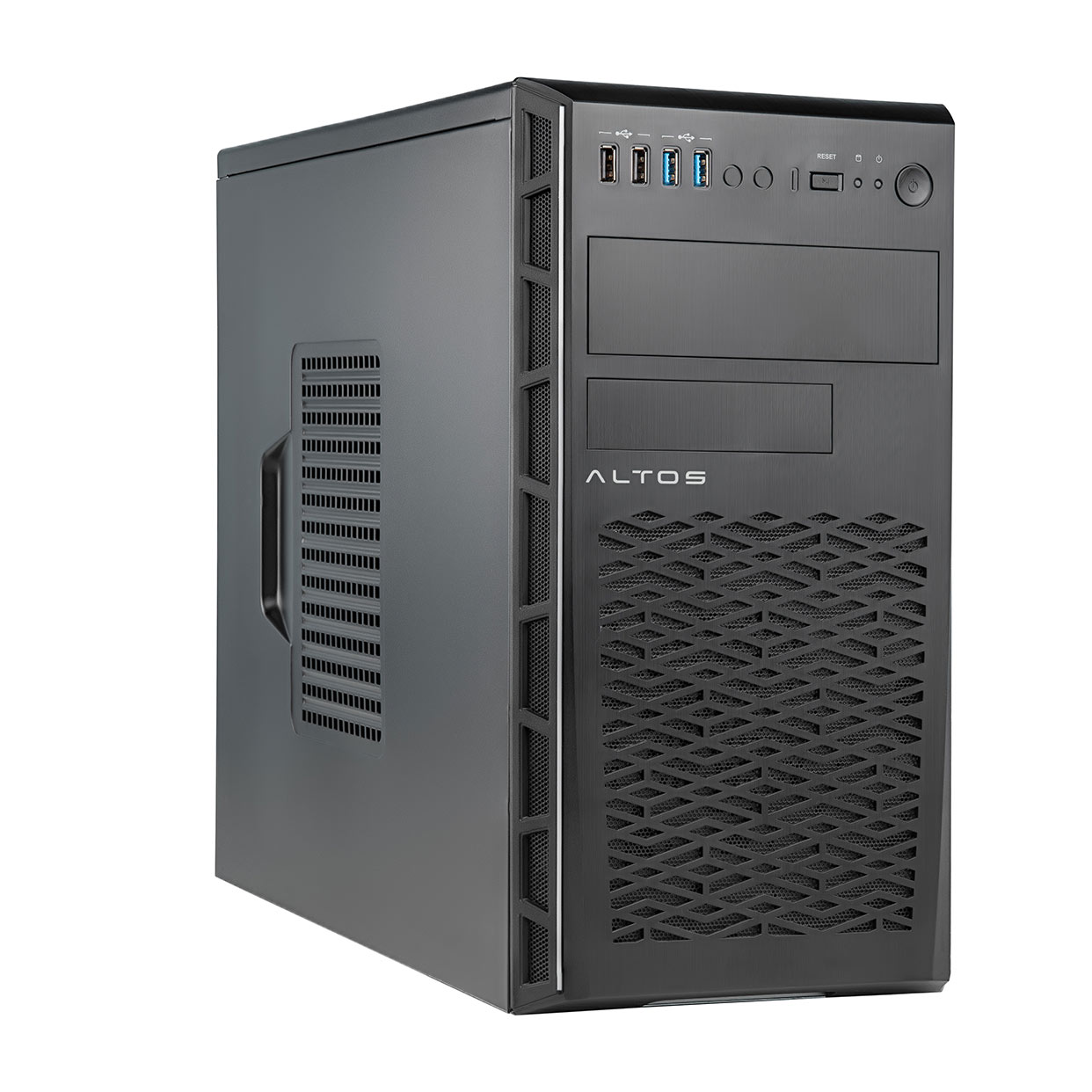

Altos BrainSphere™ T10 F6 Server
Altos BrainSphere™ T10 F6 delivers true server-class features and expandability along with best price-performance technology to assure the success of your business. This single-socket tower server features an 80 PLUS® efficient power supply that runs smoothly and quietly for maximized productivity.
Powerful performance
With Intel Xeon® E-2300 Processors, the Altos T10 F6 represents an architectural turning point for professional high-end compute needs. The all-new architecture optimizes CPU performance, allowing entry servers, secure cloud services, and edge devices/appliances to work at their best with up to 8 cores.
Flexible expansions
The Altos T10 F6 combines double PCIe Gen4 expansion slots, PCIe Gen3 M.2 NVMe SSD slot, and support for up to 4 DIMM DDR4 Non ECC / ECC UDIMMs and 2 3.5” SATA drive bays with RAID 0,1,5 OR 10 to provide users with enhanced flexibility.
Altos BrainSphere™ T10 F6 Server
- Processors：Single Intel® Xeon® E-2300 Process or(LGA1200)
- Power Supply：300W Multiple output 24 pins, 80PLUS®
500W Multiple output 24 pins, 80PLUS®>
| Processors | Single Intel® Xeon® E-2300 Process or(LGA1200) |
| Number of Processor | 1 |
| Memory | (Memory slot) 4 DIMM slots (2DPC) |
| (Memory type) Up to 128GB ECC DDR4 3200 MHz / Non-ECC Max-3200 MHz | |
| I/O Expansion | 1 PCI-E 4.0 x16 slot (CPU) |
| 1 PCI-E 4.0 x4 slot (CPU) | |
| 1 PCI-E 3.0 x1 slot (PCH) | |
| 1 M-key* (PCIe3.0 x2 or SATA 6Gb/s) | |
| support 22110/2280/2260 form factor [PCH] *SATA0 will be disabled when M2_1 populated with SATA device | |
| Management Network Interface (Controller) | Dual RJ45 1 Gb/s Ethernet LAN Port (Intel® i210) |
| Storage | (Media bay) 1x 5.25 |
| (Storage bay) 2 x 3.5 | |
| Power Supply | 300W Multiple output 24 pins, 80PLUS® |
| 500W Multiple output 24 pins, 80PLUS® | |
| OS Support | Microsoft® Windows Server 2019 & 2022 (64 Bit) |
| Hypervisor VMWare EXSi 7.0Ua / vSphere 7.0U2b | |
| SUSE Linux Enterprise Server 15 | |
| Ubuntu 2 1 . 04 (64 Bit) | |
| SP2 (64 Bit) | |
| Dimension | 380 (D) x 190 (W) x 350 (H) mm (15 x 7.5 x 13.8 inches) |
- Integrated SATA RAID supports RAID 0, 1, 5, 10 on Windows® OS only.
- Extended warranty services may vary by country. Please contact Altos for more information
