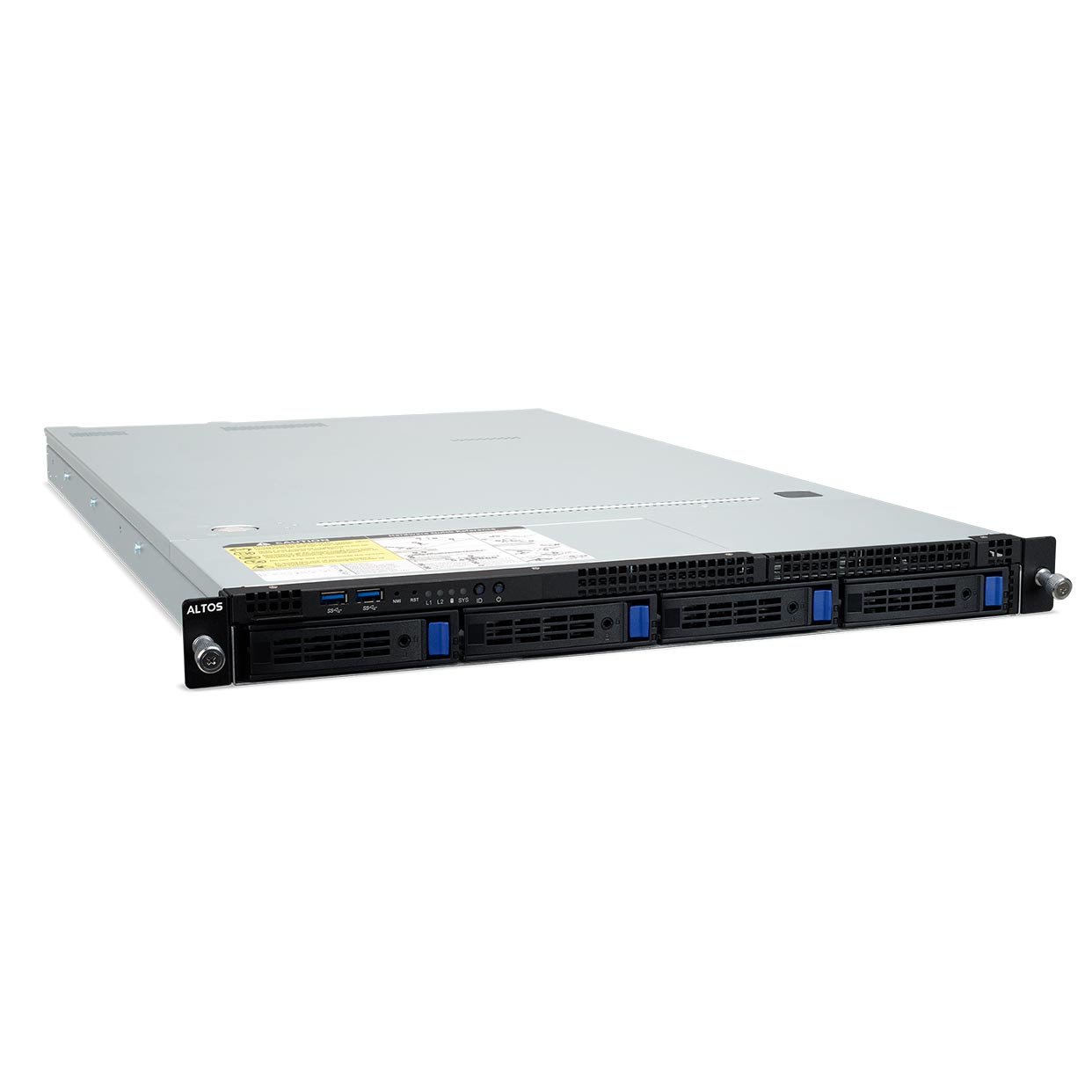

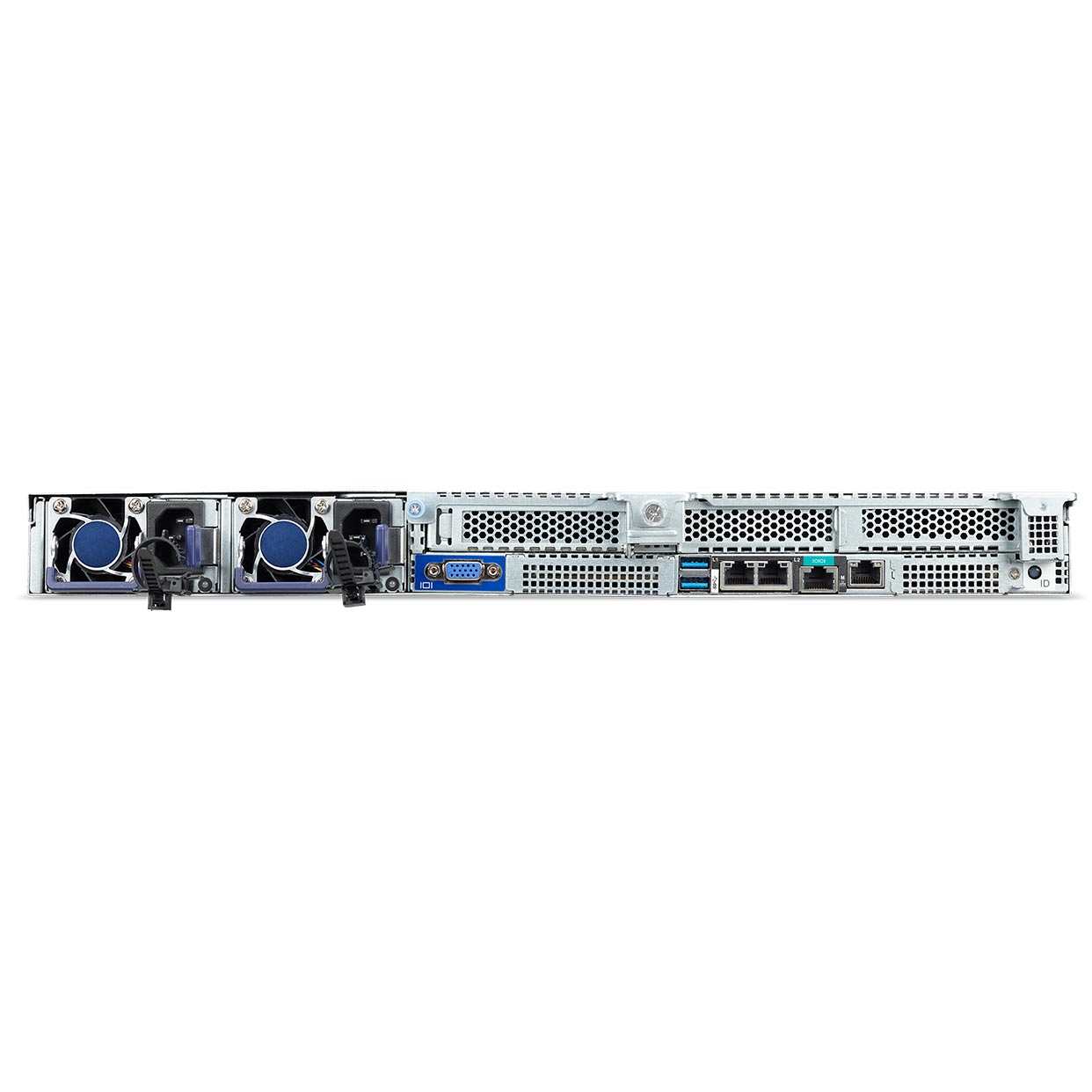

Altos BrainSphere™ R369 F4 Server
Altos BrainSphereTM R369 F4 equipped with Intel® Xeon® Scalable series processors, It is a powerful dual 1U system to provide robust performance to fulfill big data analysis, high-performance computing, virtual and cloud computing.
Powerful Computing
Powered by Intel® Xeon® Scalable series with TDP up 205W and 6 channels of memory per socket, these dual Intel Xeon® processor strikes the perfect balance of computing power, memory, and raw IO, to deliver most optimized performance and support most demanding workloads.
Excellent Expandability

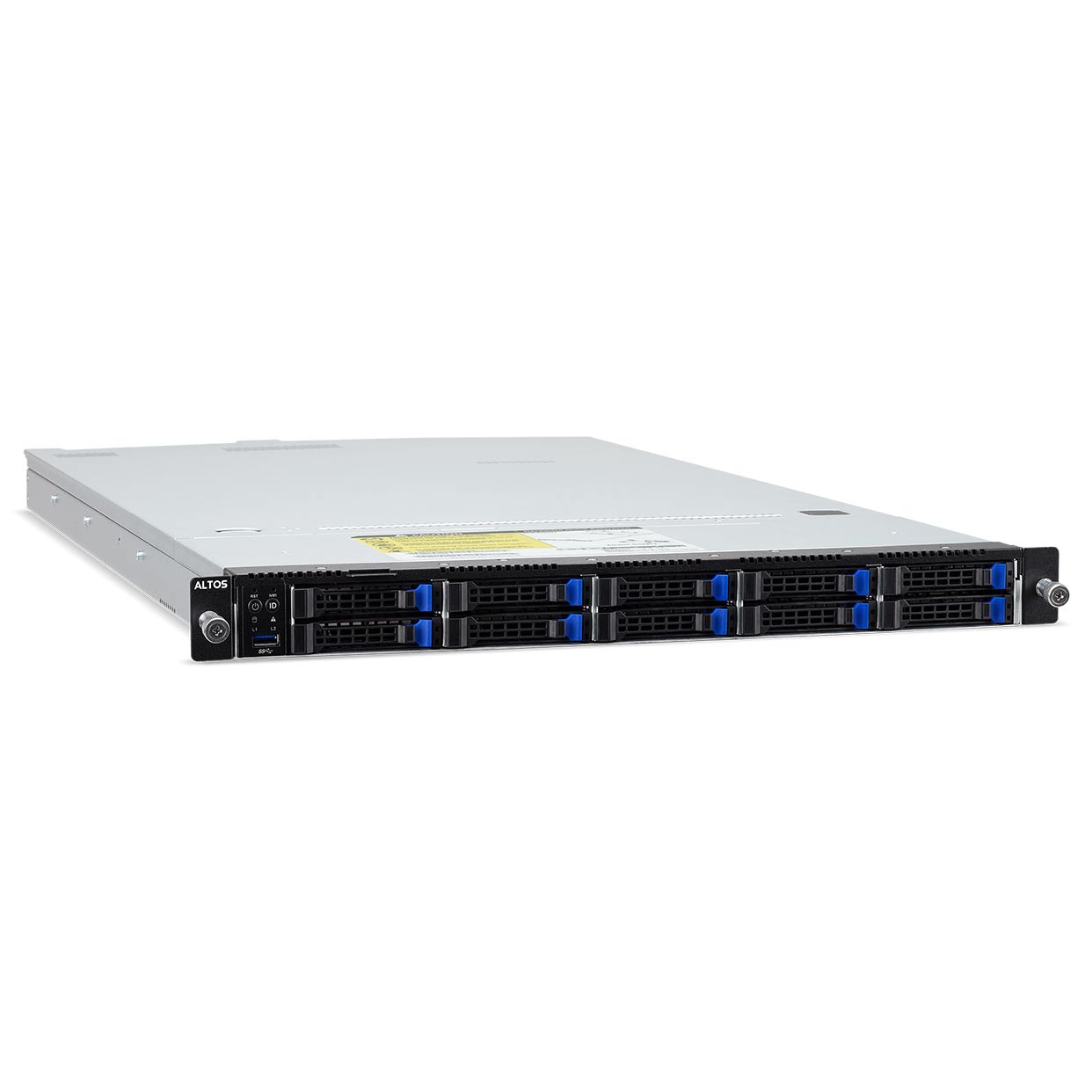

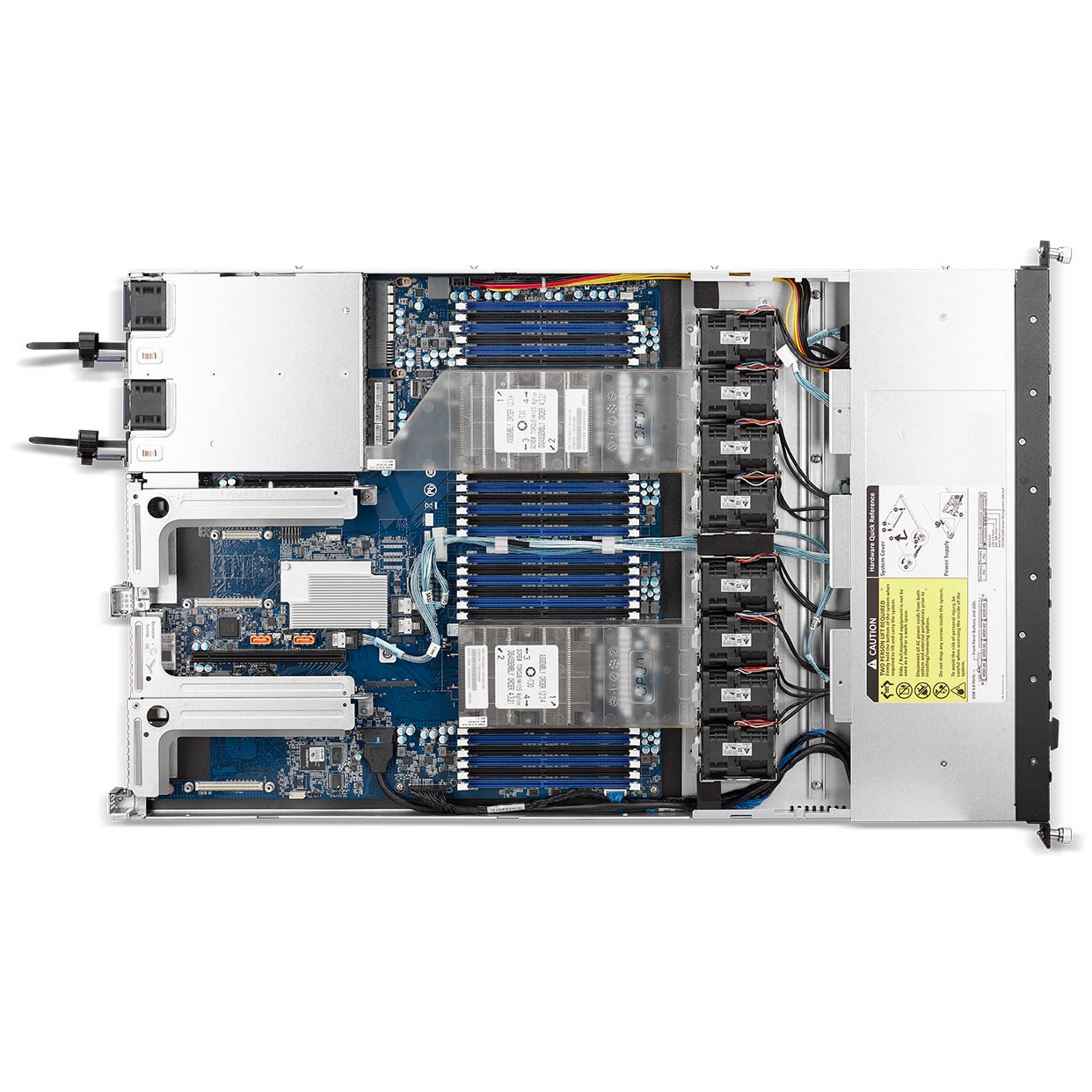

Altos BrainSphereTM R369 F4 provides up to 24 DDR4 DIMM slots, up to 3 PCIe slots, and up to 10x 2.5” drive bays, to fulfill demands of high-capacity memory and storage.
Robust Availability

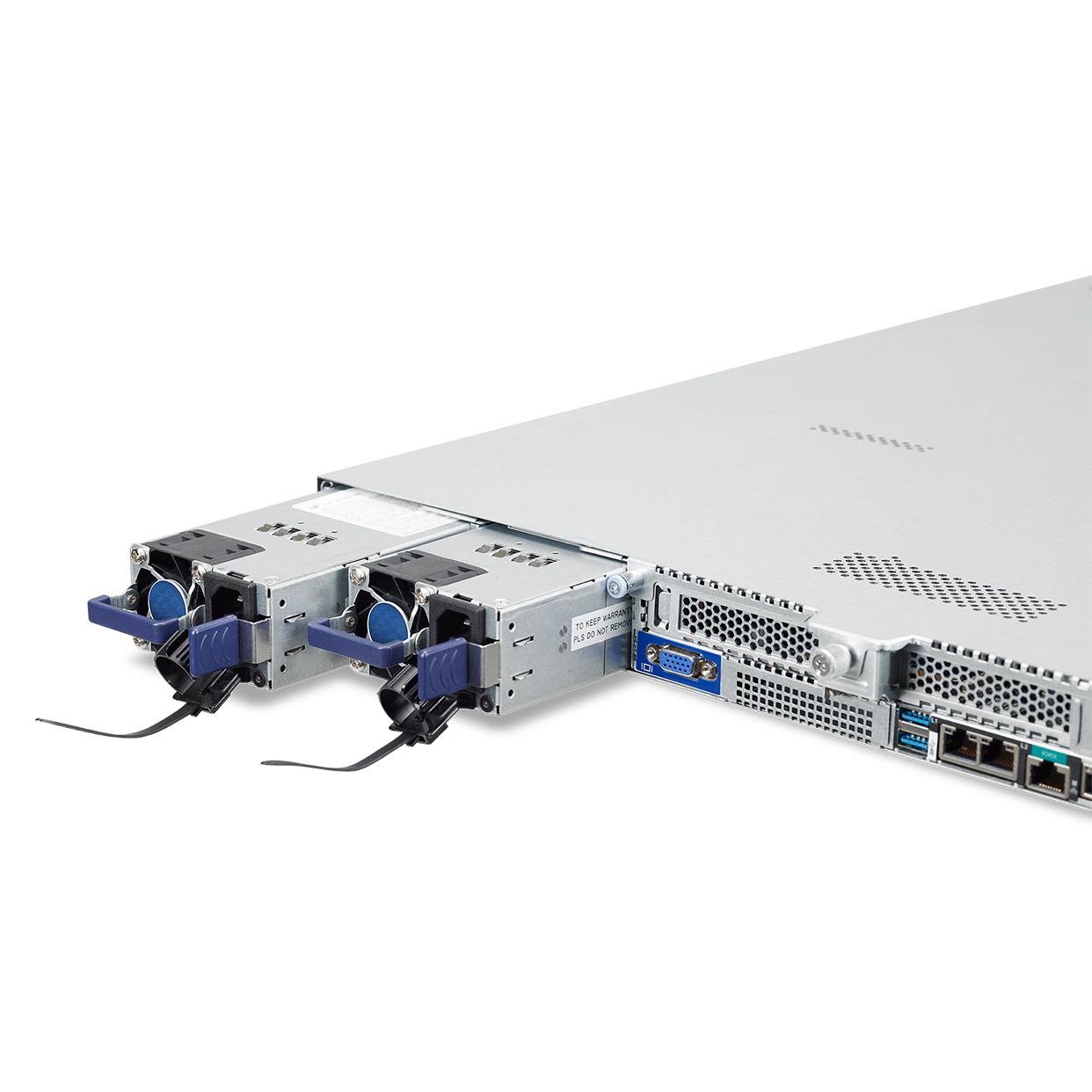

Altos BrainSphereTM R369 F4 supports 1+1 redundancy power supply and it comes with multiple options, from 550W, 800W to 1200W 80 PLUS Platinum power to offer flexibility to meet customer’s target budget, while leverage cost/performance. Additionally with eight hot- swappable system fans, it supports high system availability.
Altos Smart Server Manager (ASSM)
Through the ASSM, IT can remote control and manage the Altos BrainSphereTM server and architecture environment, thereby improving efficiency and corporate productivity. ASSM can manage Altos BrainSphereTM workstations running Microsoft Windows 10 Pro to meet workstation management needs.
Altos BrainSphere™ R369 F4 Server
- Processor: Dual Intel® 1th / 2th Xeon® Scalable Series, TDP Up to 205W
- Power Supply: 1200W 80/800W 80/550W 80+ Platinum 1+1 Redundant Power Supply
| Processors | Dual Intel® 1th / 2th Xeon® Scalable Series, TDP Up to 205W |
| Number of Processor | 2 |
| Form Factor | Full-width 1U enclosure |
| Memory | DDR4-2933MHz RDIMM / LRDIMM Memory, 24 DIMM slots |
| I/O Expansion | 2 PCI-E 3.0x 8 slots, 1 PCI-E 3.0x 16 slots, 2 OCP 3.0x 16 mezzanine slots |
| Management Network Interface (Controller) | Dual 1GBASE-T LAN ports (Intel® I350-AM2) |
| Internal Storage | 4x 3.5” HDD Hot-swap bays (for 4LFF SKU) |
| 10 x2.5” HDD Hot-swap bays (for 10SFF SKU) | |
| Power Supply | 1200W 80+ Platinum 1+1 Redundant Power Supply |
| 800W 80+ Platinum 1+1 Redundant Power Supply | |
| 550W 80+ Platinum 1+1 Redundant Power Supply | |
| OS Support | Microsoft® Windows Server 2019, 2016 |
| Red Hat Enterprise Linux 7.x and 8.0 | |
| VM VMWare ESXI 6.7 Update 3 | |
| Dimension | W438 x H43.5 x D730 mm |
