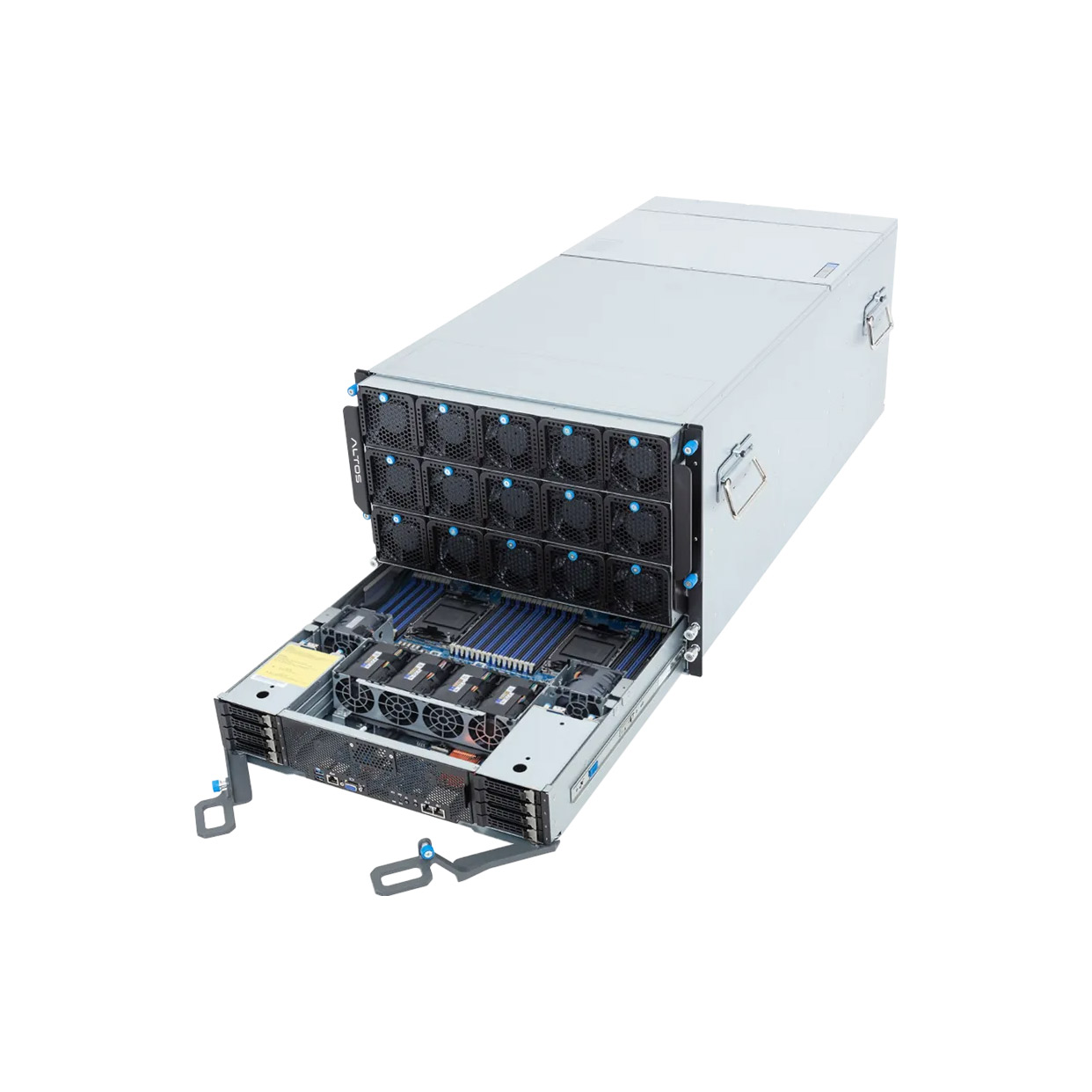

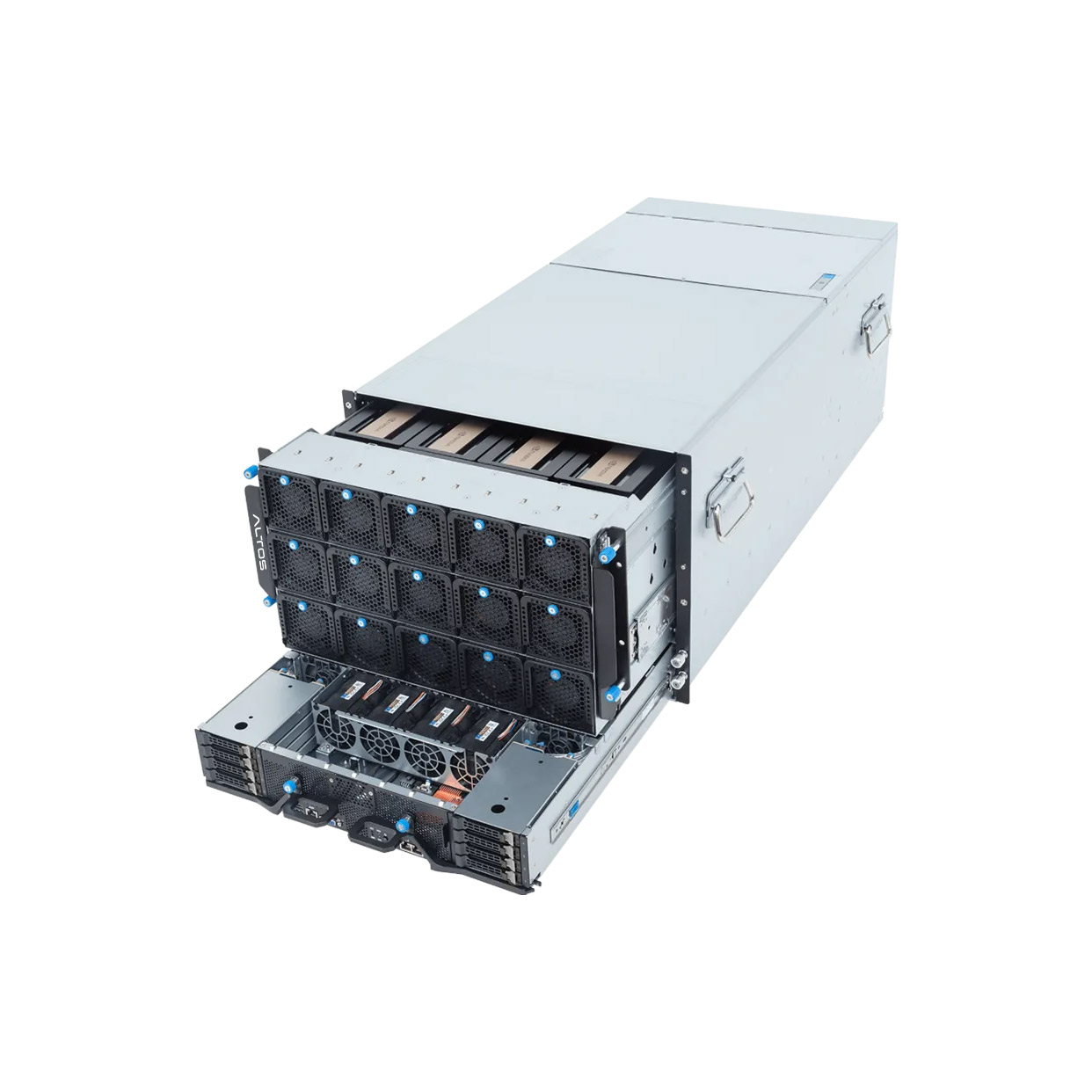

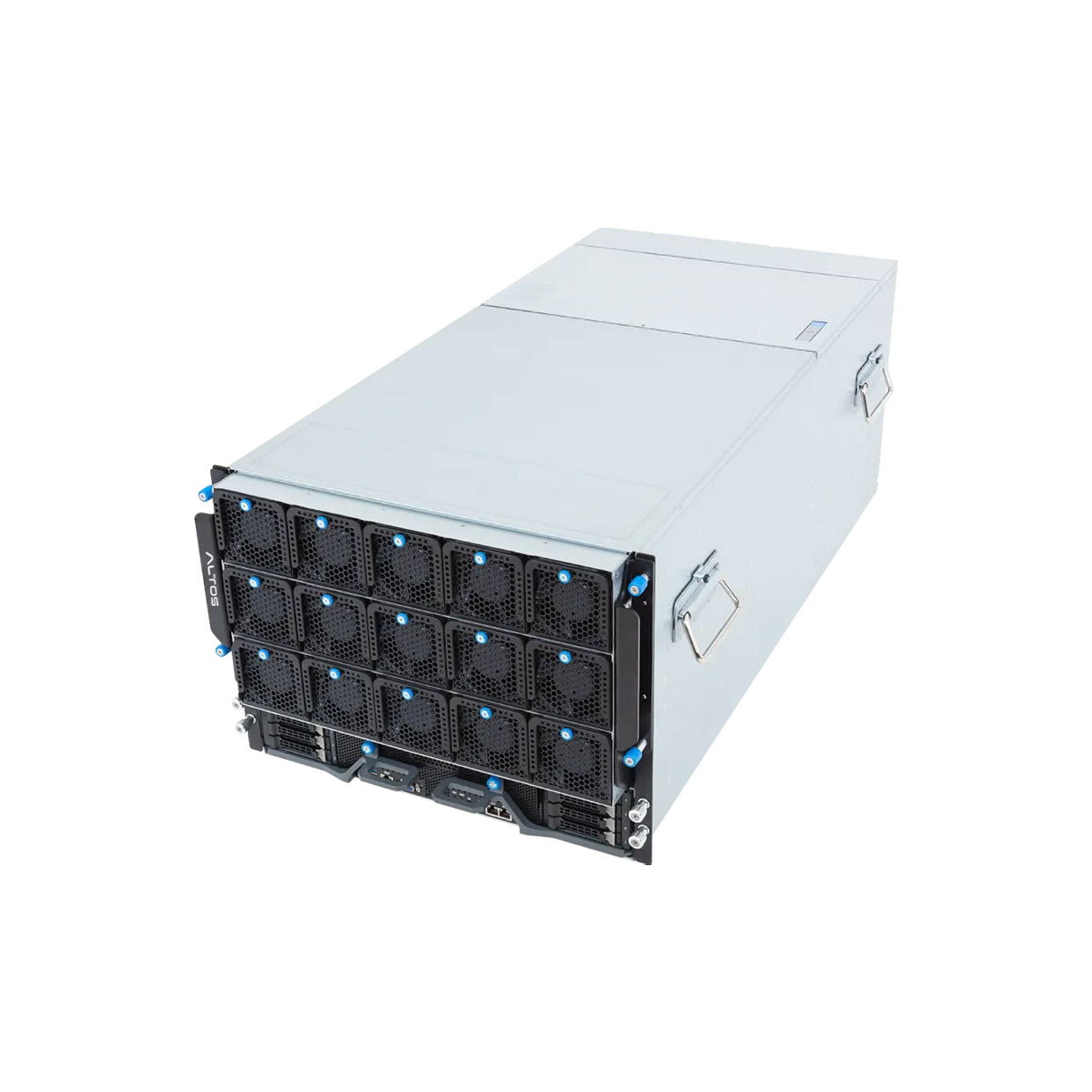

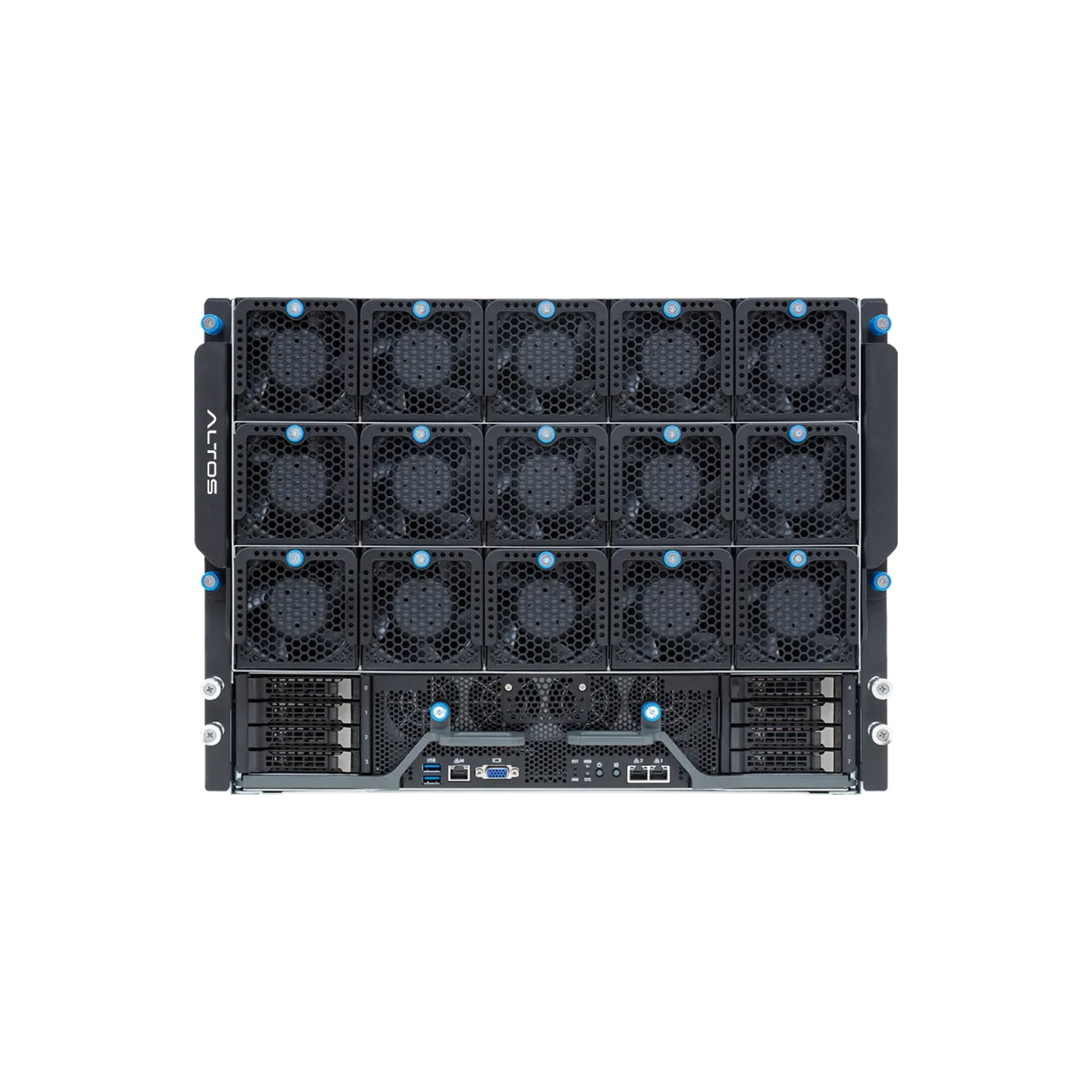

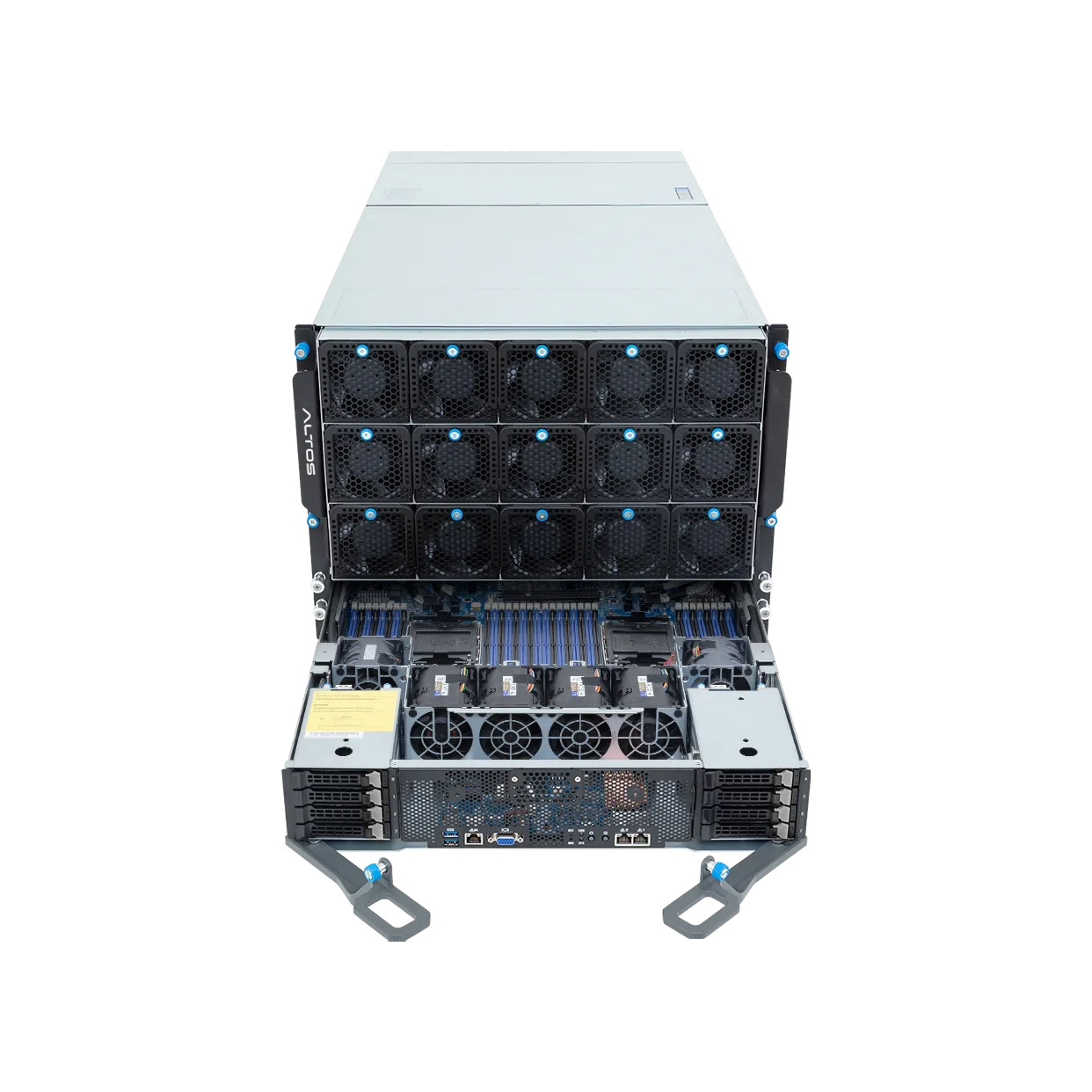

Altos BrainSphere™ R880 F8 AI Server
Altos BrainSphere™ R880 F8 is purpose-built for compute-intensive workloads including generative AI, large language models (LLMs), high-performance computing (HPC), and advanced data analytics. Powered by dual Intel® Xeon® 6700/6500 series processors, DDR5 memory, and 8 NVIDIA Blackwell Ultra GPUs built on the NVIDIA HGX™ B300 system, the R880 F8 delivers exceptional AI computing performance in a highly integrated 8U rack design, supporting the complete AI workflow from model training and fine-tuning to real-time inference.
With high-throughput and highly efficient token generation, the R880 F8 helps continuously improve Tokens per Second, Tokens per Watt, and Tokens per Dollar, enabling enterprises to accelerate AI Factory deployments at scale, improve infrastructure utilization, and maximize overall return on investment.
Exceptional AI and HPC Computing Performance
The R880 F8 is built on the NVIDIA HGX™ B300 system, leveraging NVIDIA NVLink™ and NVLink™ Switch technologies to deliver up to 1.8 TB/s of GPU-to-GPU interconnect bandwidth, significantly enhancing multi-GPU communication and parallel computing efficiency.
With more than 2.3 TB of HBM3e GPU memory and up to 64 TB/s of aggregate GPU memory bandwidth, the R880 F8 supports larger AI models, longer context lengths, and demanding workloads across generative AI, LLM training, inference, and HPC.
High-Speed Networking and Flexible Expansion for an Efficient AI Scale-Out Architecture
The R880 F8 integrates NVIDIA ConnectX®-8 SuperNIC™, providing 8 high-speed GPU network interfaces with support for up to 800 Gb/s XDR InfiniBand or dual 400 Gb/s Ethernet, delivering the high-bandwidth scale-out connectivity required for large-scale distributed AI training and inference.
The system also provides 8 × 2.5-inch PCIe Gen5 NVMe drive bays, 2 × M.2 PCIe Gen5 slots, and 4 × FHHL PCIe Gen5 x16 expansion slots. For storage protection, it supports the next-generation GRAID SupremeRAID™ AE GPU-accelerated NVMe RAID solution, leveraging GPU acceleration to deliver data protection while maintaining high NVMe storage performance. Alternatively, the system can be configured with a RAID expansion card and up to 4 M.2 NVMe SSDs to support RAID 0, 1, or 10 configurations. These flexible networking, storage, and RAID options enable optimized deployment across AI, HPC, and cloud infrastructure environments.
Centralized Management, Intelligent Operations, and AI Workload Optimization
The R880 F8 features an ASPEED® AST2600 BMC, providing comprehensive remote monitoring and system management capabilities that enable IT teams to monitor system health, power, and thermal conditions in real time.
Combined with the Altos aiWorks AI computing platform and Altos Smart Server Manager (ASSM), the R880 F8 further integrates GPU resource management, workload scheduling, system monitoring, and AI development and deployment workflows. This unified approach strengthens centralized management and intelligent operations for large-scale AI infrastructure while improving resource utilization, operational efficiency, and overall return on investment.
Altos BrainSphere™ R880 F8 AI Server
- Processors：Dual 6th Gen Intel® Xeon® Scalable processors, TDP up to 350W
- Power Supply：6+6 3000W 80 PLUS Titanium redundant PSUs
| Processors | Dual 6th Gen Intel® Xeon® Scalable processors, TDP up to 350W |
| Number of Processor | 2 |
| GPU | NVIDIA HGXTM B300 with 8 x NVIDIA Blackwell Ultra GPUs |
| Memory | 32 DIMM slots, Up to 4TB ECC DDR5 6400 MHz ECC RDIMM |
| Expansion Slots | 4 x FHHL dual-slot PCIe Gen5 x16 slots |
| Network | 8 x 800 Gb/s OSFP XDR InfiniBand / dual 400 Gb/s Ethernet(NVIDIA ConnectX-8 SuperNIC) |
| 2 x 10GbE(NCSI supported) 2 | |
| 1 x 1GbE Management Ports | |
| Storage | Up to 8 x 2.5 |
| 2xPCIe Gen5 M.2 2280/2210 | |
| Power Supply | 6+6 3000W 80 PLUS Titanium redundant PSUs |
| OS Support | Microsoft® Windows Server, Red Hat Enterprise Linux Server, Ubuntu Server LTS |
| Dimension | 447 (D) x 351 (W) x 923 (H) mm |
- Extended warranty services may vary by country. Please contact Altos for more information.
