Altos BrainSphere™ T315 F6 Server
Altos BrainSphere™ T315 F6 delivers true server-class features and expandability along with best price-performance technology to assure the success of your business. This single-socket tower server features redundant 80 PLUS® Platinum power supply that maximize system performance and comprehensive productivity.
Powerful performance
With AMD EPYC™ 4004 Processor, the Altos T315 F6 represents an architectural turning point for professional high-end compute needs. The all-new architecture optimizes CPU performance, allowing entry servers, secure cloud services, and edge devices/appliances to work at their best with up to 16 cores.
Flexible expansions
The Altos T315 F6 combines PCIe Gen5 expansion slot, PCIe Gen5 M.2 NVMe SSD slot, and support for up to four DDR5 ECC UDIMMs, and four 3.5”/2.5” SATA drive bays with RAID 0,1 or 10 to ensure data security and enhance expansion flexibility.
Easy maintenance

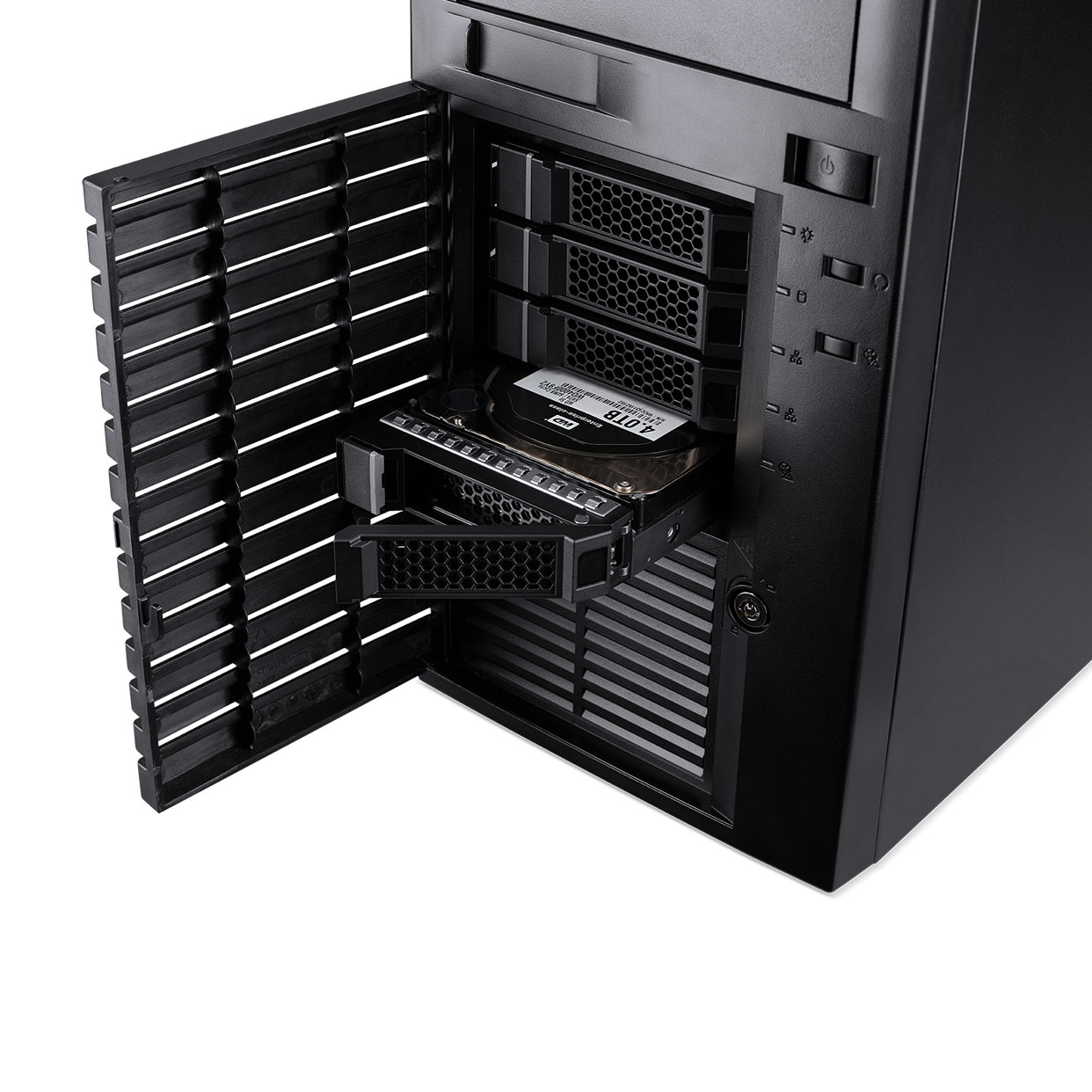

The Altos T315 F6 comes with hot plug HDD bay design that enables easy component access, reducing maintenance efforts and service costs. Moreover, T315 F6 is equipped with 80 PLUS® Platinum power supply for maximum energy efficiency.
Altos BrainSphere™ T315 F6 Server
- Processors：AMD EPYC™ 4004 Processor, AM5, up to 16 Core / 170W TDP
- Power Supply：550W 80PLUS® Platinum 1+1 Redundant PSU
| Processors | AMD EPYC™ 4004 Processor, AM5, up to 16 Core / 170W TDP |
| Number of Processor | 1 |
| Memory | (Memory slot) 4 DIMM slots (Dual Channel) |
| (Memory type) Up to 32GB ECC DDR5 5200 MHz UDIMM | |
| (Total Memory capacity) Up to 128GB | |
| I/O Expansion | 1x PCIe 5.0 x16 slot |
| 1x PCIe 4.0 x16 slot (wires x4) | |
| 1x PCIe 4.0 x1 slot | |
| 1 x M.2 2280 slot (M key, PCIe 5.0 x4) | |
| 1 x M.2 2280 slot (M key, PCIe 4.0 x4) | |
| Management Network Interface (Controller) | Realtek® 2.5GbE LAN (RTL8125) |
| Realtek® GbE LAN (RTL8111EP) | |
| Storage | (External bay) 1x 5.25 |
| (Internal bays) 4 x 3.5 | |
| Power Supply | 550W 80PLUS® Platinum 1+1 Redundant PSU |
| OS Support | Microsoft® Windows Server 2022 |
| Red Hat Linux 8.x/9.x | |
| SUSE Linux Enterprise Server 15 SP4 | |
| Ubuntu 22.04/24.04 | |
| Dimension | 198mm (W) x 425mm (H) x 553mm (D) (7.8 x 16.73 x 21.77 inches) |
integrated NVMe/SATA RAID supports RAID 0, 1, 10 on Windows® OS only.
