Altos XD5326S/D
Altos｜QSAN XD5326S and XD5326D is 26Bay cost-effective DAS (Direct Attached Storage) or JBOD (Just a Bunch Of Drives) for server expansion. It is also a RAID expansion enclosure for ALTOS SAN (Storage Area Network), XS1212D and XS5226D. XD5326 series come with the option for single single controller (XD5326S) and dual controllers (XD5326D), it offers the flexibility for the users to select based on different need/budget and future upgrade.
High Performance & High Throughput
XD5326S (for single controller) and XD5326D (for dual controller) offers a smart and elastic runtime configuration with 5 ports or up to 10 ports 12Gb/s SAS wide ports support that significantly increase the data bandwidth for various applications, include but not limited to video editing, high performance computing, cloud storage, streaming, broadcasting, virtualization and datacenter.

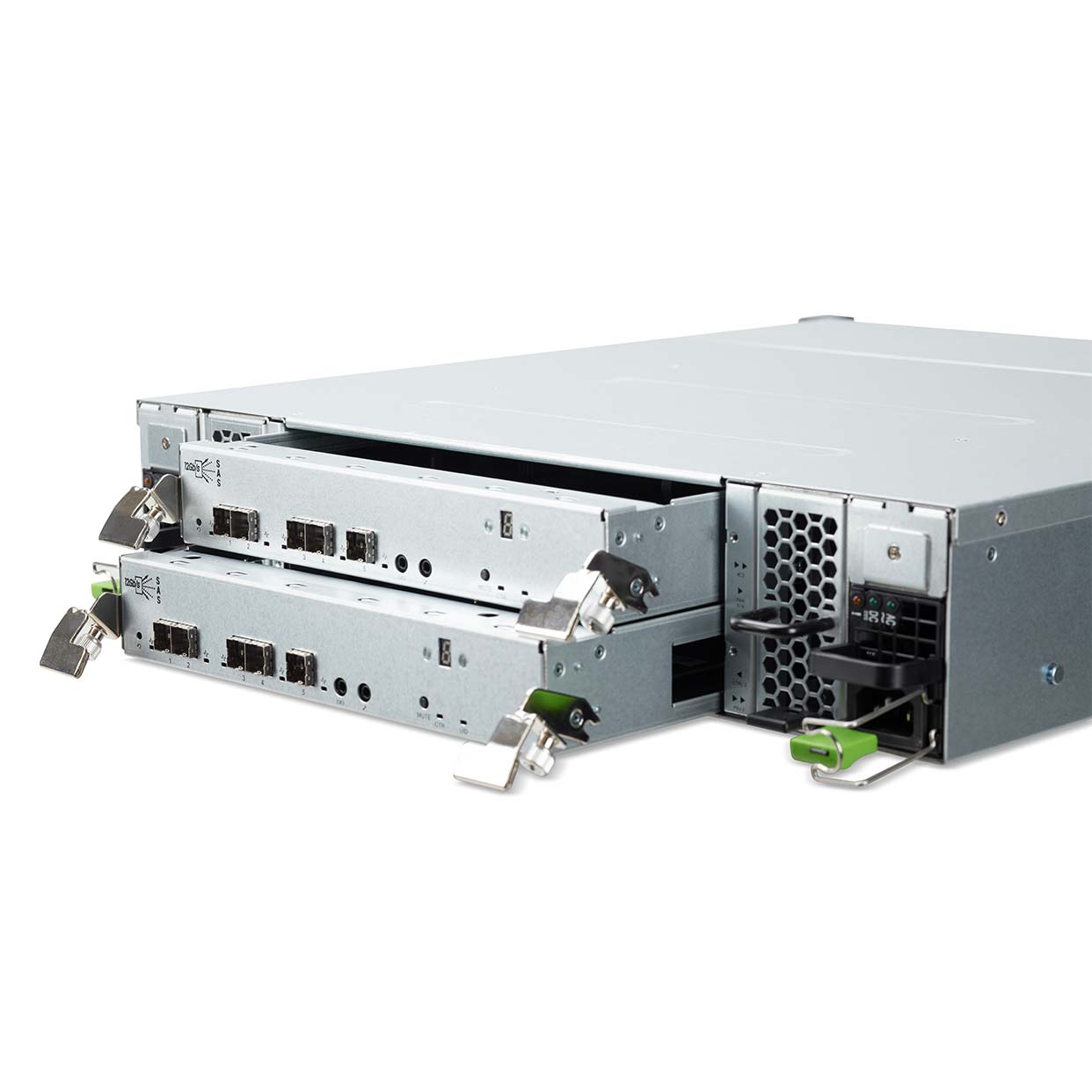

FRU(Field Replacement Unit) Design Architecture and High Availability
XD5326S and XD5326D is fully modularized, cable-less design architecture with the option for power supply modules and fan modules are easily replaceable and support fault tolerance capability.
Versatile Topologies
XD5326S and XD5326D features all 12Gb/s SAS topologies and permutations of all host and expansion port configurations. It supports all 12Gb/s SAS topologies, include Cascade, Reverse and Tree.
| I/O Expansion | SAS Ports |
| Single Controller 5 x 12Gb/s SAS SFF-8644 | |
| Dual Controller 10 x 12Gb/s SAS SFF-8644 | |
| Drive Bays | 26Bay 2.5” SAS, NL-SAS, SED HDD or 26Bay 2.5” SAS, SATA SSD(thru 6Gb MUX board) |
| Power Supply | 850W 1+1 Redundant 80+ Platinum |
| OS Support | Windows Server 2016/2019 |
| SLES 10,11, 12 | |
| RHEL 5, 6, 7 | |
| Centos 6, 7 | |
| Solaris 10, 11 | |
| FreeBSD 9, 10 | |
| Mac OS X, 10, 11 or Later | |
| VMWare, Hyper-V & Citrix | |
| Dimension | W88 x H491 x D438 mm |
