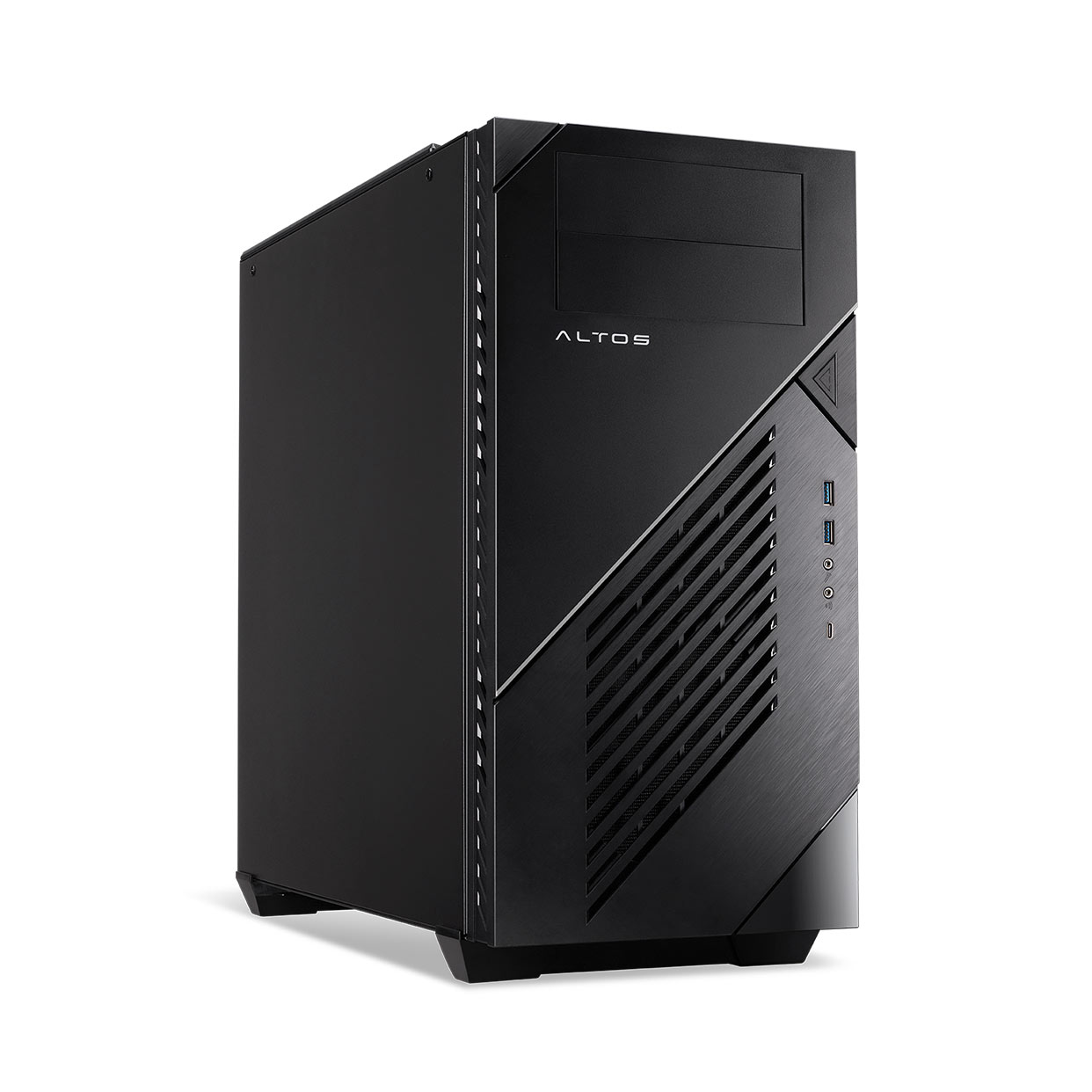

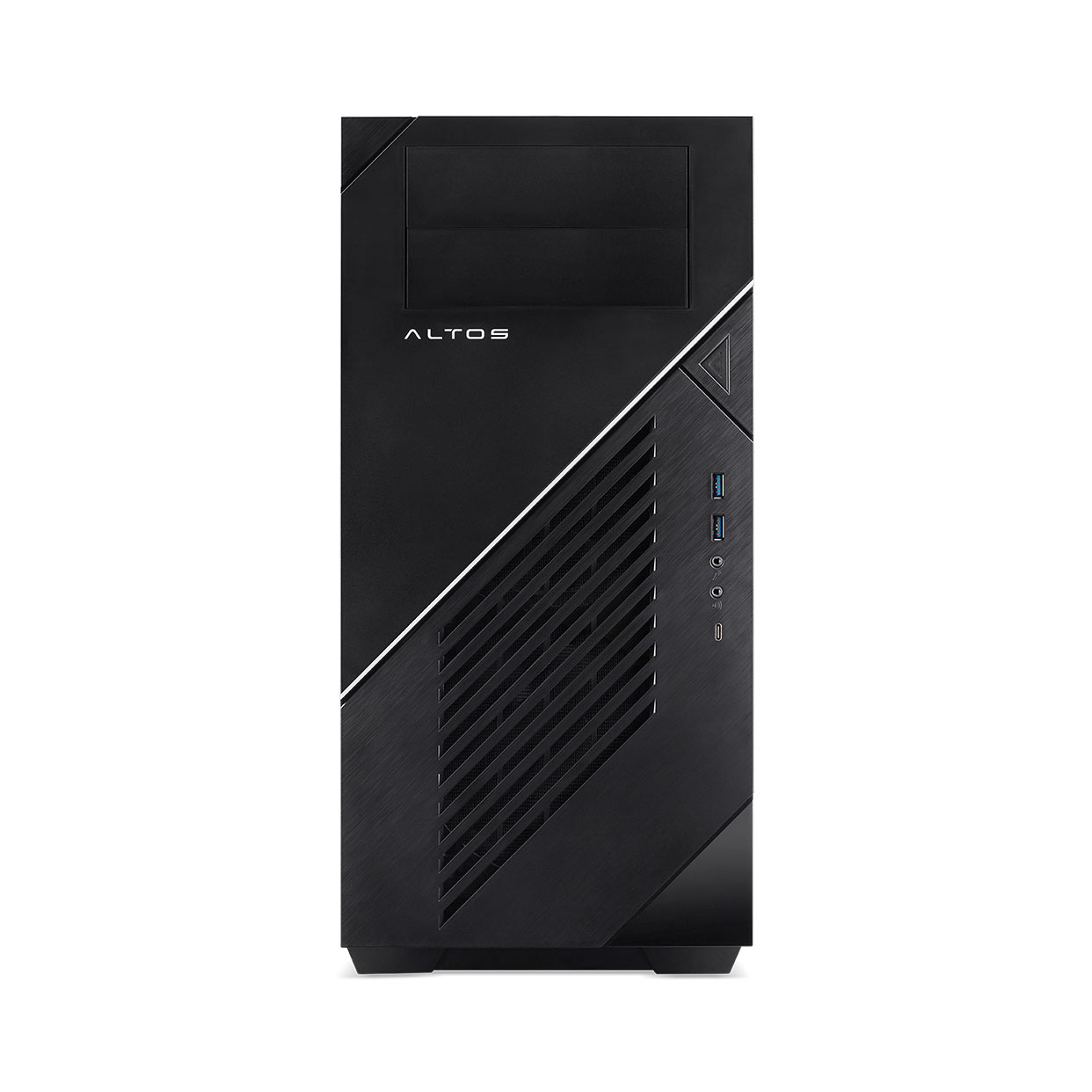

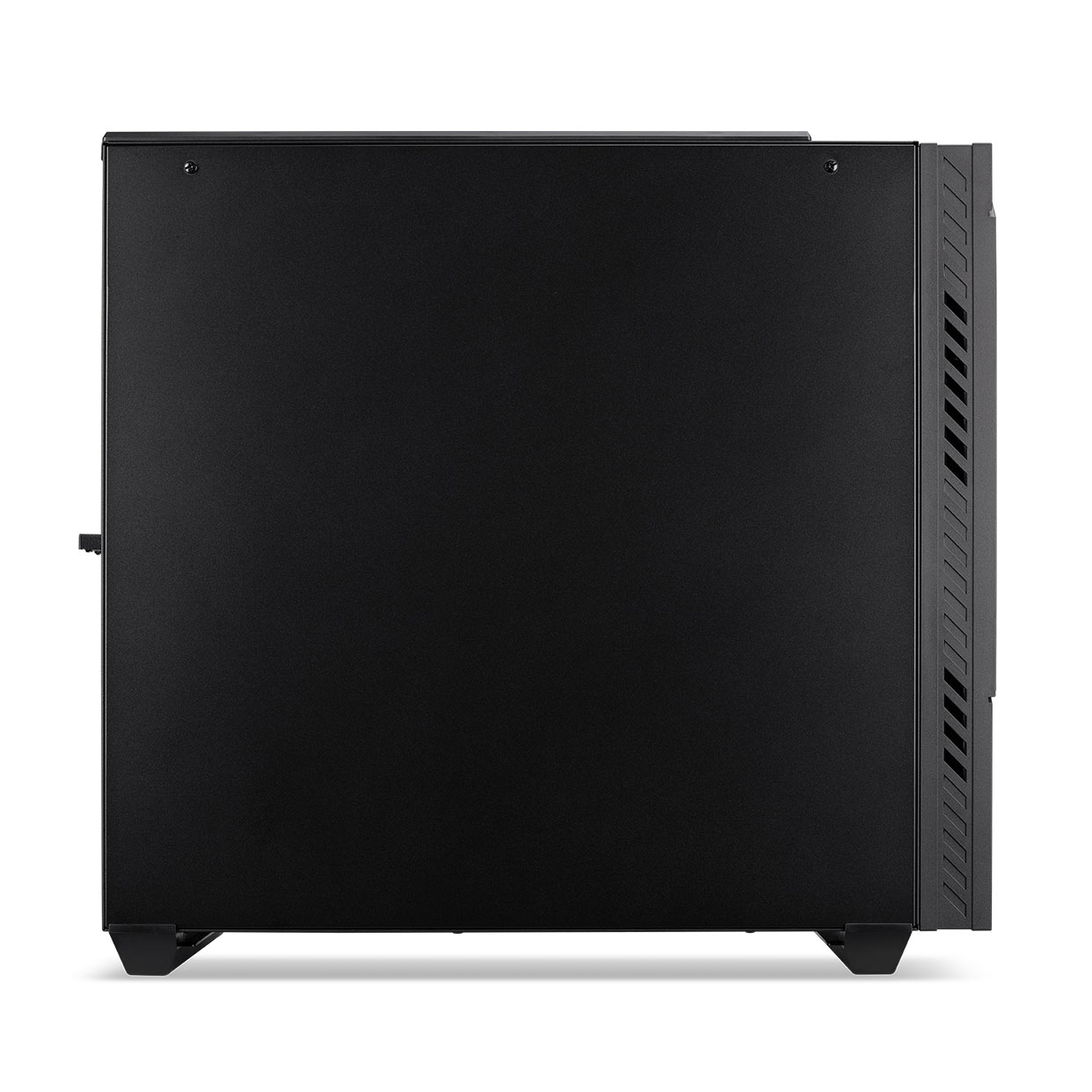

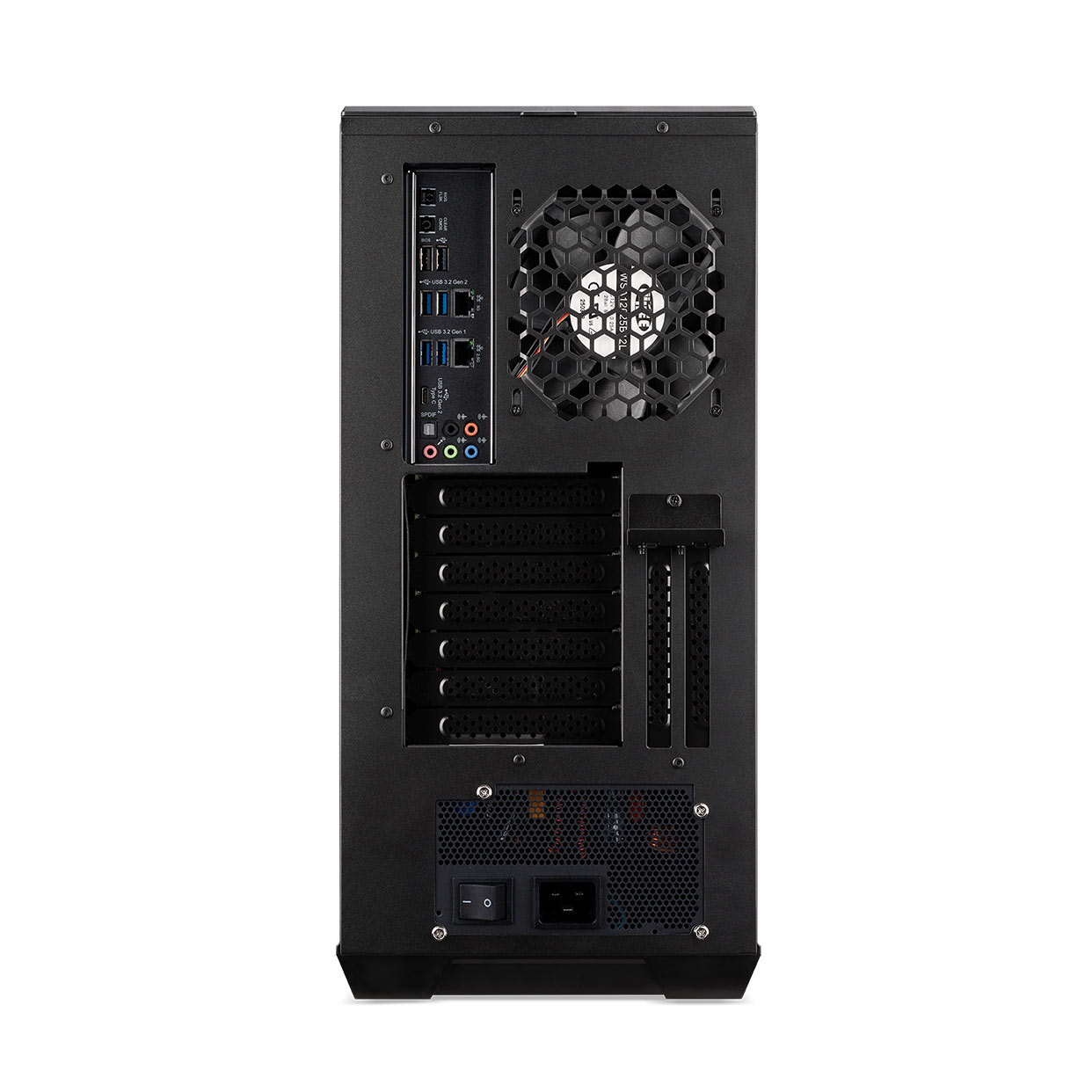

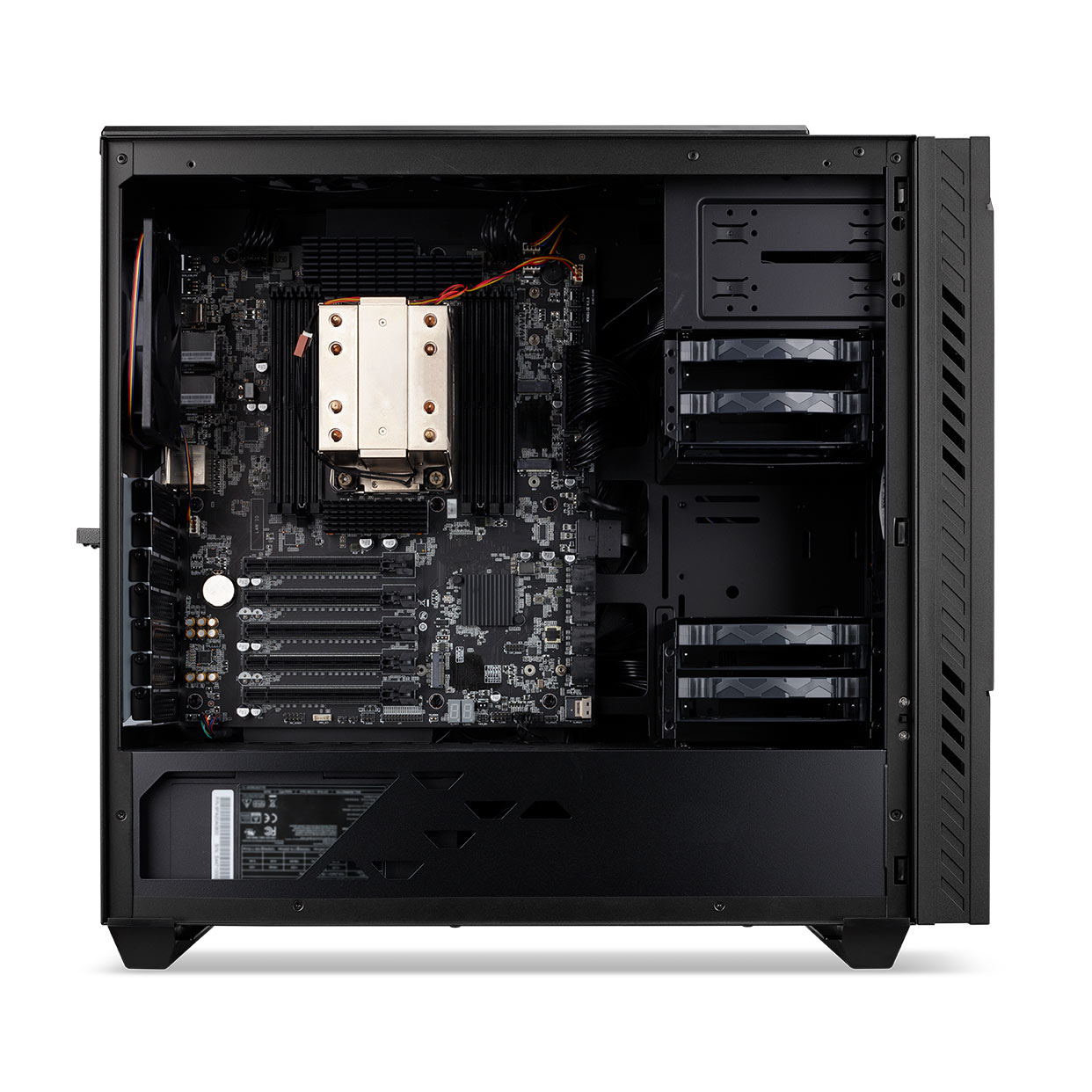

Altos BrainSphere™ P330 F6 SE
Altos P330 F6 SE is a high-performance workstation designed for media professionals, engineers, and creators who demand uncompromising computing power and seamless workflow integration. Powered by the Intel® Xeon® W processor with the Intel® W790 chipset, supporting up to 60 cores, it delivers exceptional multi-core performance, outstanding reliability, and extensive expansion capabilities, making it an ideal solution for media production, CAD/CAE, and visual simulation work-loads.
Extreme Performance for Demanding Workloads
Up to 60 cores and 120 threads delivers exceptional compute power for media production, simulation, and AI training.
Supports up to 512GB DDR5 ECC memory enabling ultra-fast memory band-width and extensive I/O scalability for high-performance workstations.
Dual High-End GPU Support for Extreme Graphics Performance
Integrated with a 2000W 80+ Platinum PSU, the system supports two high-performance graphics cards. ideal for rendering, simulation, and AI acceleration
Enterprise-Grade Reliability and Security
Supports ECC memory and Software RAID (0/1/5/10), ensuring stable system operation and reliable data protection for mission-critical workloads.
Equipped with Intel® vPro®, TPM 2.0, Secure Boot, and Intel® PTT, delivering robust hardware-based security for professional environments.
Next-Gen I/O and Connectivity
Supports DDR5-4800 memory, Wi-Fi 6E, dual LAN, two M.2 SSDs, and up to 10 USB ports, including USB 3.2 Gen 2x2 (20Gbps) ports for ultra-fast data transfer.
Altos BrainSphere™ P330 F6 SE
- Processors:Intel® Xeon® W-3400, W-2400, W-3500 and W-2500 Series Processors (LGA4677)
- Power Supply:850W Multiple output 24 pins, IEC C14 AC Connector, ATX3.1 80PLUS® Gold PSU
2000W Multiple output 24 pins, IEC C20 AC Connector, 80PLUS® Platinum PSU
| Processors | Intel® Xeon® W-3400, W-2400, W-3500 and W-2500 Series Processors (LGA4677) |
| Number of Processor | 1 |
| Memory | 8 DIMM slots (Quad channel) |
| Up to 512GB | |
| I/O Expansion | 3 PCI-E 5.0 x16 slots |
| 2 PCI-E 5.0 x16 slots (16/0, 8/8 mode) | |
| 1 M.2 2280/22110 PCI-E 4.0 x4 slots (NVMe SSD) | |
| 1 M.2 2280 PCI-E 4.0 x4 slots (NVMe SSD) | |
| 1 M.2 2230 PCI-E E Key (Wi-Fi & BT) | |
| Management Network Interface (Controller) | 2.5 Gb/s LAN Port (Intel® I226-LM) |
| 5Gb/s LAN Port(Realtek RTL8126-CG) | |
| Storage | 4 x 3.5" or 2.5" slots：For hard disks |
| Power Supply | 850W Multiple output 24 pins, IEC C14 AC Connector, ATX3.1 80PLUS® Gold PSU |
| 2000W Multiple output 24 pins, IEC C20 AC Connector, 80PLUS® Platinum PSU | |
| OS Support | Microsoft® Windows 11 Pro 64-bit |
| Red Hat Enterprise Linux 9 | |
| Dimension | 56L, 470 (D) x230 (W) x 518.5 (H) mm (18.5 x 9.6 x 20.3 inches) |
