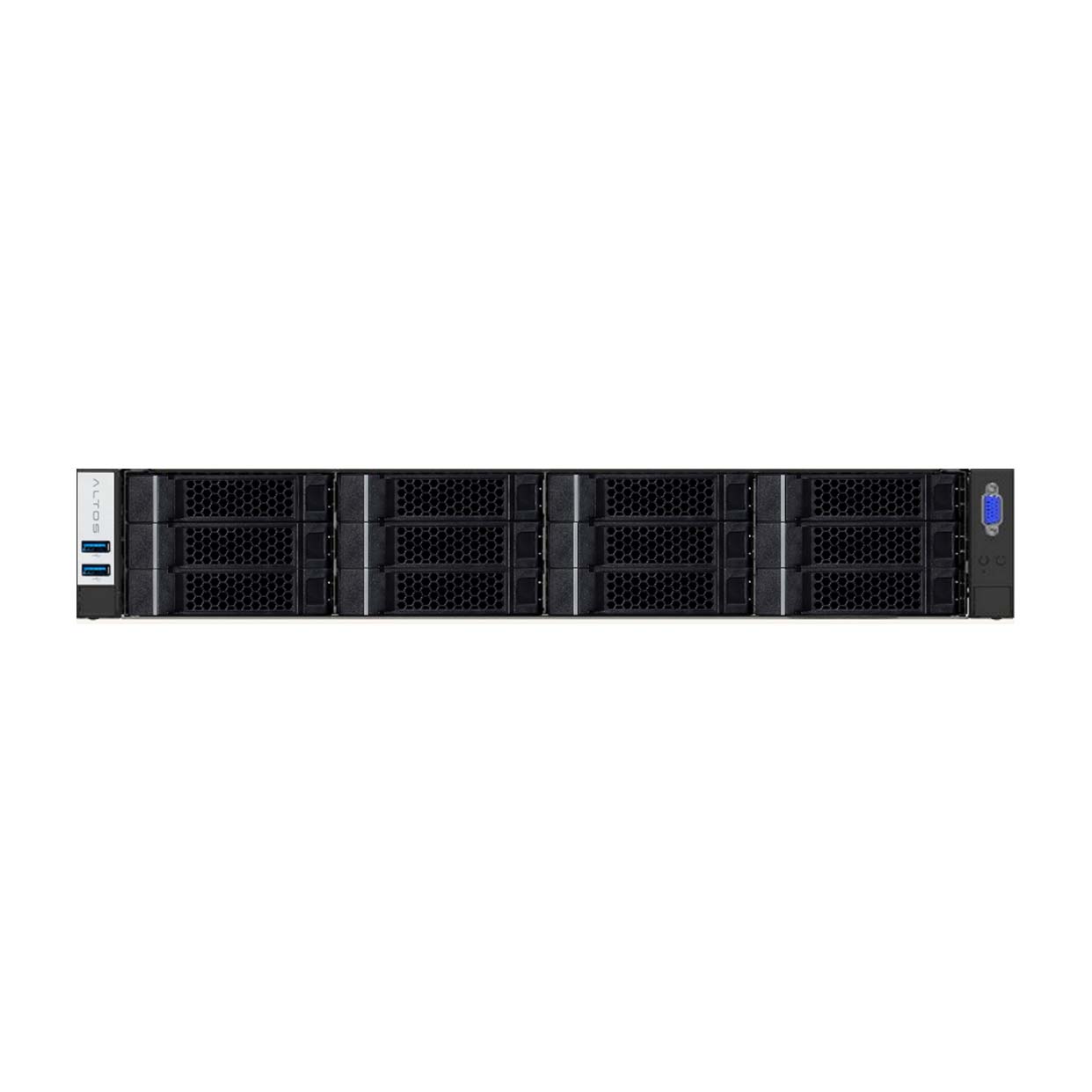

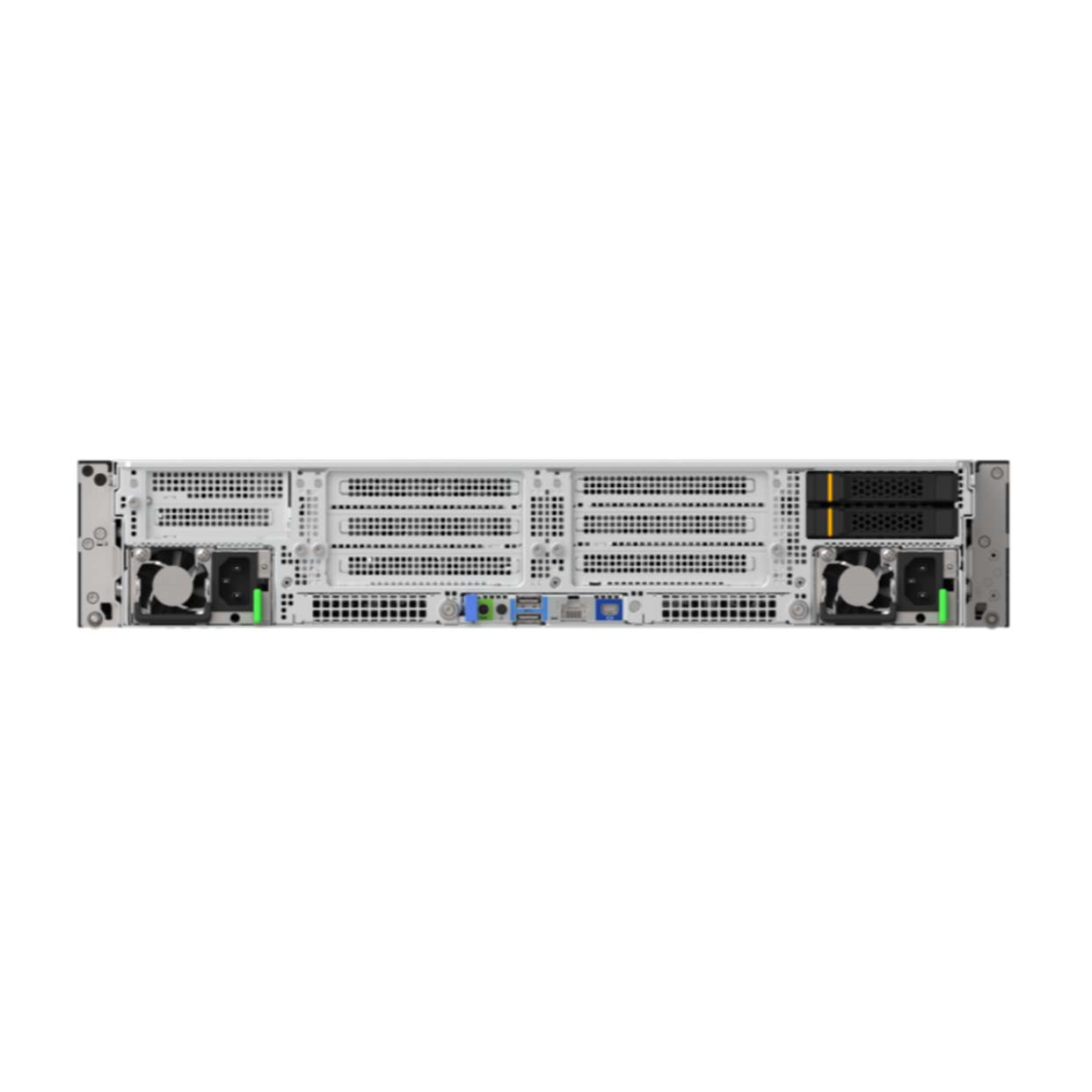

Altos BrainSphere™ R385 F6 Server
Altos BrainSphere™ R385 F6 is a powerful dual-socket 2U system designed to de-liver exceptional performance, powered by the latest generation AMD EPYC™ 9004 / 9005 series processors. This system offers high core counts, large memory band-width, and advanced I/O expandability, making it ideal for a wide range of applica-tions including, but not limited to, big data analytics, high-performance computing (HPC), virtualization, edge computing, and cloud computing
Rich Computing Power
Powered by AMD EPYC™ 9004 / 9005 series processors, featuring up to 128 cores and 12 channels of DDR5 memory per socket, the EPYC processors deliver an ex-ceptional balance of core/thread density, memory bandwidth, and I/O throughput. This enables highly optimized performance and efficient support for the most de-manding and data-intensive workloads
Excellent Expandability
Altos BrainSphere™ R385 F6 provide 24 of DDR5-6000MT/s DIMM slots, can sup-port maximum Two GPU, total of Twelve 3.5”/ 2.5” drive bays, to perfectly fulfill demands of high-capacity memory and storage.
Robust and Reliable Computing
The BrainSphere™ R385 F6 has dual 2400W PSU, 80 PLUS Titanium, to support 1+1 redundancy.
Altos BrainSphere™ R385 F6
- Processors：AMD EPYC™ 9005/9004 Series Processors.
- Power Supply：2 x 2400W 80Plus Titanium CRPS Redundant power supply
| Processors | AMD EPYC™ 9005/9004 Series Processors. , TDP up to 360W |
| Number of Processor | 2 |
| Memory | 24 DIMM slots |
| Up to 6TB ECC DDR5 6400 MHz ECC RDIMM | |
| I/O Expansion | 4 PCI-E 5.0 x16 slots |
| 1 PCI-E 5.0 x8 slot | |
| Maximum support is 2 RTX Pro 6000 Max-Q/L40s/RTX 6000ada | |
| 2 OCP 3.0 x16 slots | |
| 2 M.2 2280 PCI-E 3.0 slots(support NVMe ) | |
| Network | Default not have on-board NIC, need optional OCP or PCI-E Lan card to support |
| Dual 1GbE RJ45 Ports OCP 3.0 (options) | |
| Dual 10GbE RJ45 Ports OCP 3.0 (options) | |
| Dual 25GbE SFP28 Ports OCP 3.0 (options) | |
| Dual100GbE SFP28 Ports OCP 3.0 (options) | |
| Dual1GbE RJ45 Ports PCI-E(options) | |
| Quad1GbE RJ45 Ports PCI-E (options) | |
| Dual 10GbE RJ45 Ports PCI-E (options) | |
| Dual 10GbE SFP+ Ports PCI-E (options) | |
| Quad10GbE SFP+ Ports PCI-E (options) | |
| Storage | 4 x 3.5” /2.5” SATA and 2 x 2.5” SATA hot-swappable bays (SAS card is required to enable the SAS drives) |
| 12 x 3.5” /2.5”SATA/SAS hot-swappable bays (option HBA or Raid Card) | |
| 12x 2.5” NVMe hot-swappable bays | |
| Power Supply | 2400W 80Plus Titanium CRPS Redundant power supply |
| OS Support | Microsoft® Windows Server 2025 /2022 |
| REHL 9.5 | |
| Ubuntu 24.04 64bit Server | |
| Certification | CE ,FCC,BSMI,CB |
| Dimension | 770 (D) x 438 (W) x 87 (H) mm |
- Extended warranty services may vary by country. Please contact Altos for more information.
