Altos BrainSphere™ S330 F6 Server
The Altos BrainSphere™ S330 F6 series storage device is designed as a premium solution for medium to large-scale IP video surveillance applications. It is suitable for monitoring systems in various settings such as banks, shopping centers, factories, warehouses, commercial establishments, residences, and both public and private enterprises. The subsystem of this storage device features continuous recording and playback functionality, ensuring a seamless experience without losing the layout of the footage.
Robust and Reliable Computing

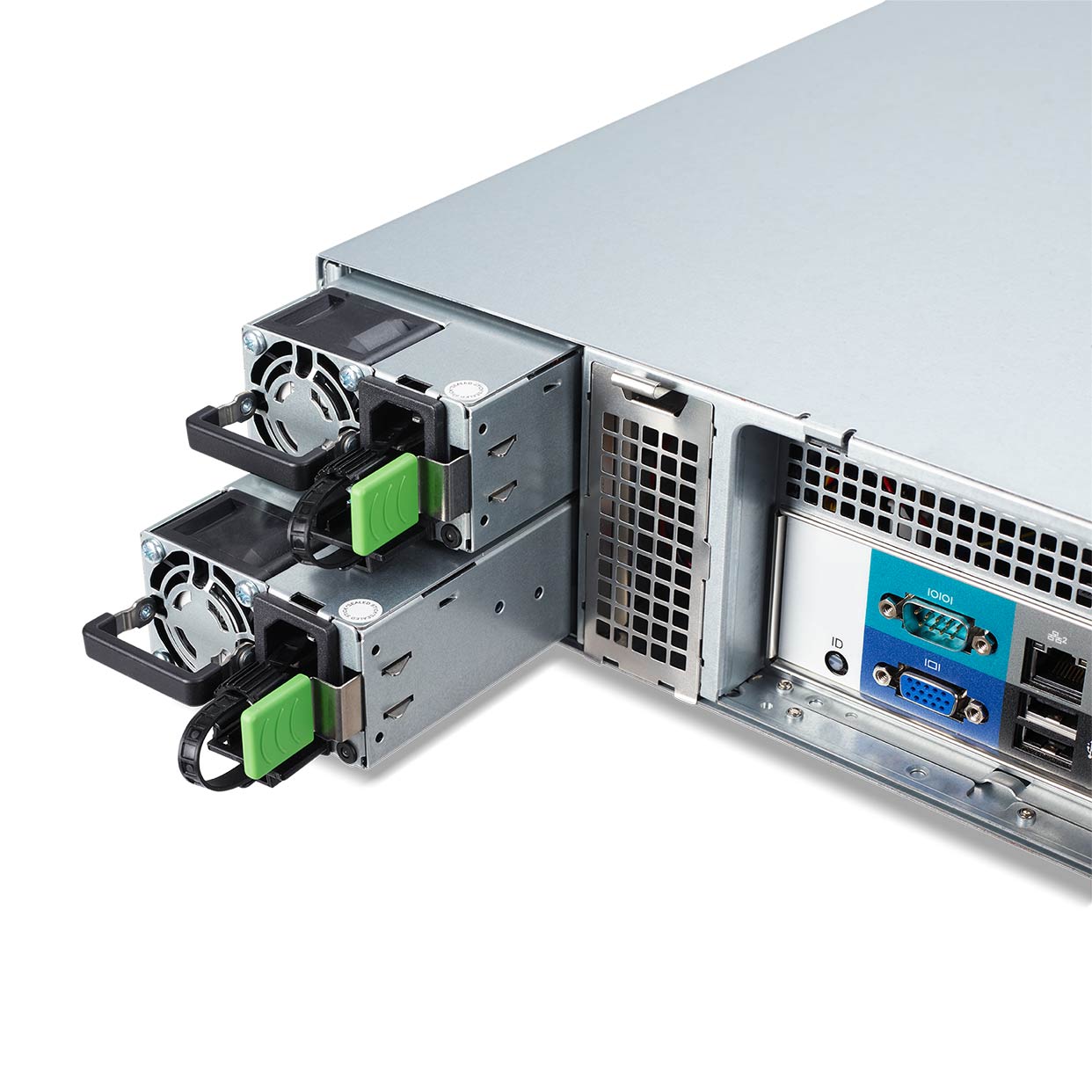

Altos BrainSphere™ S330 F6 is equipped with Intel® Xeon® E-2300 processors and features a 1+1 redundant power supply, ensuring continuous and reliable server operation. This configuration is designed to maximize surveillance performance, enabling you to achieve superior results in both storage and monitoring applications.
Higher Capacity and Enhanced Design

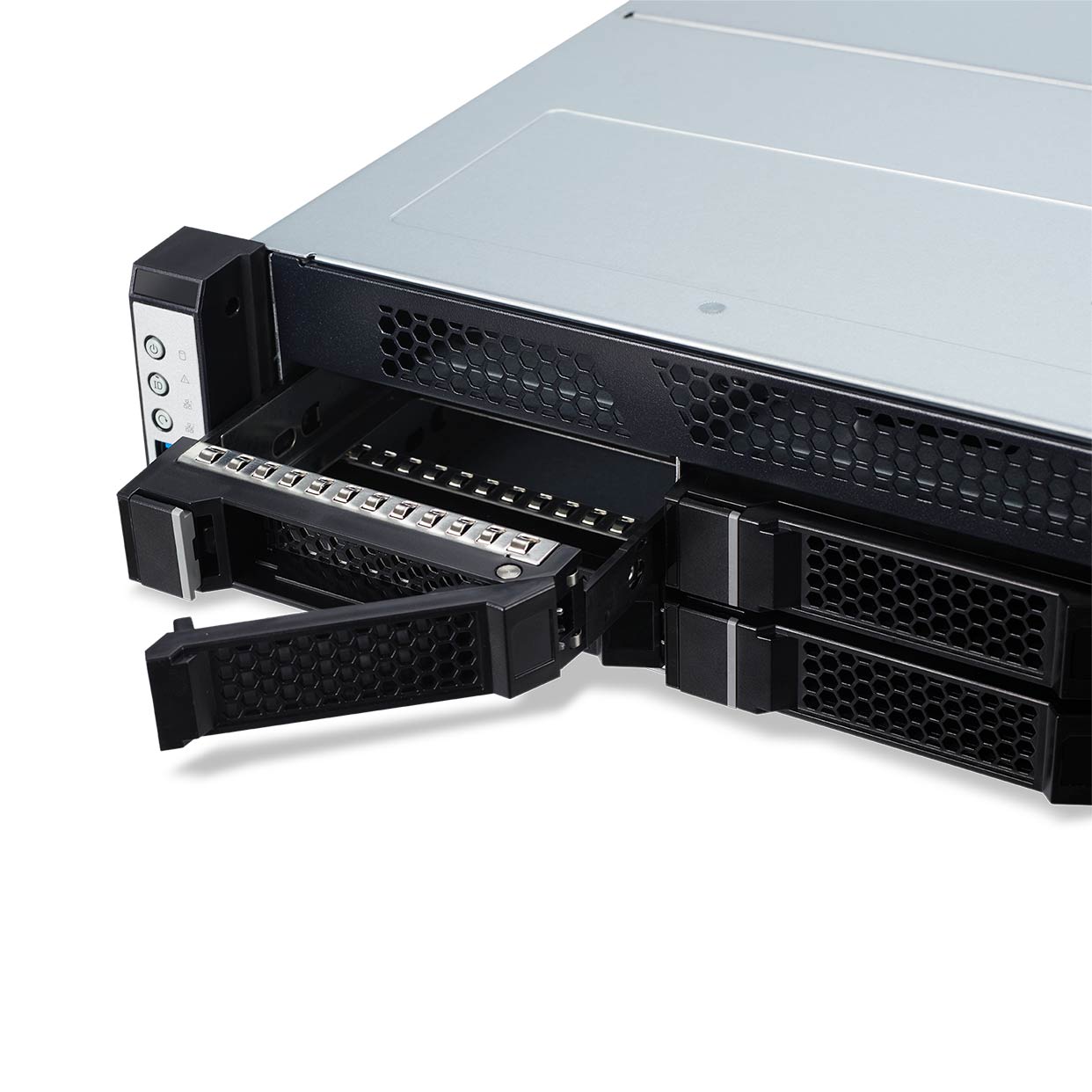

Altos BrainSphere™ S330 F6 supports the hot-swappable functionality of 8 hard drives, along with PCIe® 4.0 expansion slots, meeting high standards for computing demands in the business sector. Furthermore, the hardware RAID support for 0, 1, 5, 6, and 10 enhances data access speed and reliability, providing you with an outstanding storage solution.
Altos Video Surveillance Transmission Acceleration System
Altos BrainSphere™ S330 F6, coupled with the Altos Video Surveillance Transmission Acceleration System, not only delivers outstanding high-speed video recording performance, real-time storage acceleration, and highly accurate image recognition but also stands out with its exceptional support for IP surveillance cameras. It can simultaneously support a greater number of IP surveillance cameras, providing enhanced flexibility and comprehensive deployment options in secure environments.
Altos BrainSphere™ S330 F6 Server
- Processors:Intel® Xeon® E-2300 Processor
- Power Supply:2 x 550W 80Plus Platinum CRPS Redundant power supply
| Processors | Intel® Xeon® E-2300 Processor, TDP up to 95W |
| Number of Processor | 1 |
| Memory | 4 DIMM slots |
| Max support 128GB, DDR4 2933/3200 ECC UDIMM | |
| I/O Expansion | 1 x PCI-E 4.0 x16 slots and |
| 1 x PCI-E 4.0 x4 slots | |
| 1 x M.2 2280 PCI-E 3.0 slots | |
| Network | 2 x 1Gb/s RJ45 Port |
| Storage | 8 x 3.5/2.5 SATA /SAS hot-swappable bays |
| (SAS card is required to enable the SAS drives) | |
| Raid 0,1,5,6,10 (Options RAID card) | |
| Power Supply | 2 x 550W 80Plus Platinum CRPS Redundant power supply |
| OS Support | Microsoft® Windows Server 2022 /2019 |
| REHL 7.3 /6.9 | |
| Ubuntu 18.04 64bit Server | |
| Dimension | 2U |
| 662 (D) x 437 (W) x 89 (H) mm | |
| EMC/Safety | CE ,FCC,BSMI,CB |
- Extended warranty services may vary by country.
- Please contact Altos for more information.
